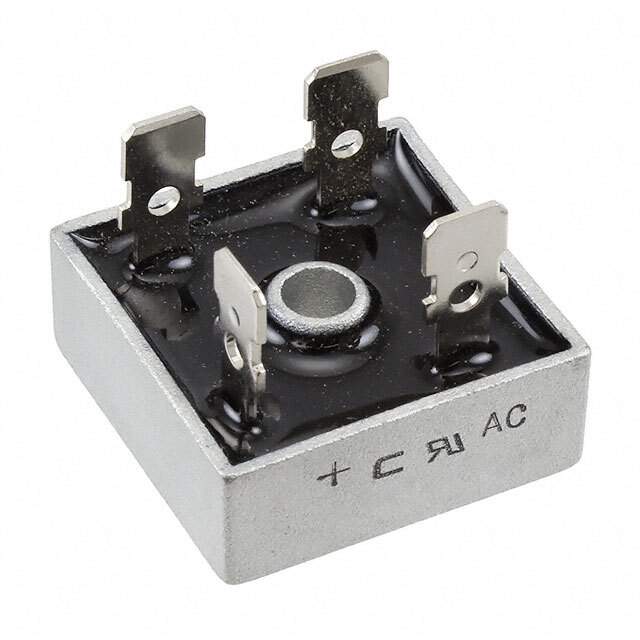

KBPC1010-G Real Image
Same model may have multiple batches, images only for reference.

KBPC1010-G

Part No KBPC1010-G
Manufacturer Comchip Technology
Catalog Bridge Rectifiers
Description RECTIFIER BRIDGE 10A 1000V KBPC / Diode Rectifier Bridge Single 1KV 10A 4-Pin Case KBPC Box
Datasheet
KBPC1010-G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Comchip Technology
Packaging Bulk
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Maximum) 1000V
Current - Average Rectified (Io) 10A
Voltage - Forward (Vf) (Maximum) @ If 1.1V @ 5A
Current - Reverse Leakage @ Vr 10μA @ 1000V
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Chassis Mount
Package 4-Square, KBPC
Manufacturer Package KBPC
Win Source Part Number 777971-KBPC1010-G
Popularity Medium
Supply and Demand Status Limited
Quantity per package 50
Family Name KBPC1010
Introduction Date June 21, 2002
ECCN EAR99
Country of Origin Taiwan
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian KBPC1010-G CAD Model

Description

The Comchip Technology KBPC1010-G is a standard technology diode that belongs to the KBPC family. The specifications are as follows:

  • Packaging: Bulk
  • Operating Temperature Range: -55°C to 150°C
  • Diode Type: Single Phase
  • Average Rectified Current: 10A
  • Peak Reverse Voltage: 1000V
  • Forward Voltage: 1.1V @ 5A
  • Supply and Demand Status: Limited
  • Quantity: 50 per package
