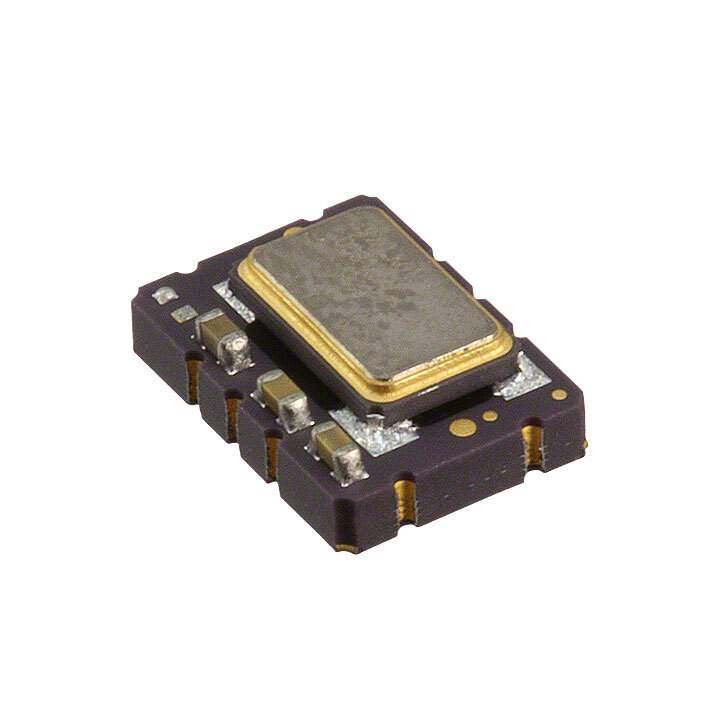

DV75C-040.0M Real Image
Same model may have multiple batches, images only for reference.

DV75C-040.0M

Part No DV75C-040.0M
Manufacturer Connor-Winfield Corporation
Catalog Oscillators
Description XTAL OSC TCXO 40.0000MHZ LVCMOS / 40 MHz TCXO LVCMOS Oscillator 3.3V 4-SMD, No Lead
Datasheet
DV75C-040.0M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr Connor Winfield
Series DV75C
Package Tape & Reel
Base Resonator Crystal
Type TCXO
Frequency 40 MHz
Output LVCMOS
Voltage - Supply 3.3V
Frequency Stability ±280ppb
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 6mA
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max) 0.094" (2.40mm)
Standard Package 250
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1337607-DV75C-040.0M
Ultra Librarian 3D Model Ultra Librarian DV75C-040.0M CAD Model

Description

The DV75C series TCXO oscillator by Connor Winfield is a high-quality electronic component with a frequency of 40 MHz and a frequency stability of ±280ppb.

  • Package: Tape & Reel
  • Category: Oscillator
  • MSL Level: 1 (Unlimited)
  • REACH: Unaffected
  • ECCN: EAR99
  • Supplied Quantity: 250 per package
  • Popularity: Medium
