Same model may have multiple batches, images only for reference.

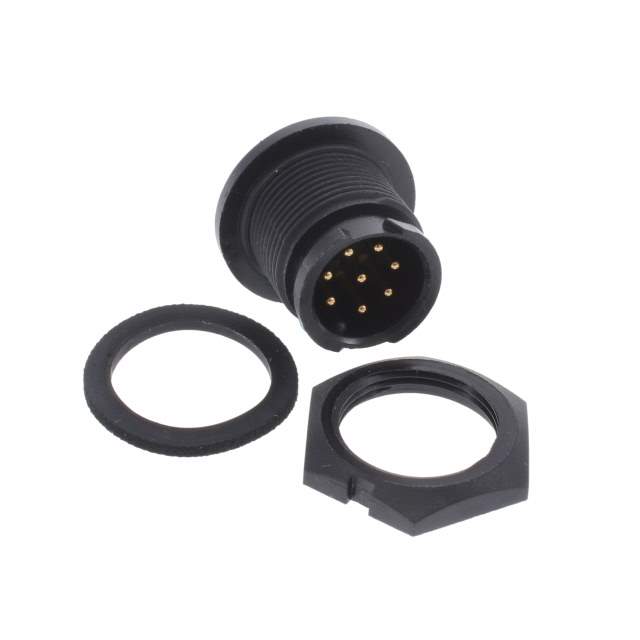

W7281-8PG-P-3ES Real Image
Same model may have multiple batches, images only for reference.

W7281-8PG-P-3ES

Part No W7281-8PG-P-3ES
Manufacturer Conxall/Switchcraft
Catalog Circular Connectors - Assemblies
Description CONN RCPT MALE 8POS GOLD SOLDER / 8 Position Circular Connector Receptacle, Male Pins Solder
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Circular Connectors - Circular Connector Assemblies
Mfr Conxall/Switchcraft
Series Mini-Con-X® Insta-Click™
Package Bulk
Connector Type Receptacle, Male Pins
Number of Positions 8
Mounting Type Panel Mount, Through Hole
Mounting Feature Bulkhead - Front Side Nut
Termination Solder
Fastening Type Bayonet Lock
Orientation Keyed
Primary Material Plastic
Shell Material Thermoplastic
Contact Finish - Mating Gold
Color Black
Ingress Protection IP66/IP67/IP68 - Dust Tight, Water Resistant, Waterproof
Features UV Resistant
Shielding Unshielded
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 300VAC/DC
Temperature Range - Operating -40°C ~ 85°C
Backshell Material, Plating Thermoplastic
Contact Material Copper Alloy
Insert Material Thermoplastic
Applications Automotive, Communication Systems, Instrumentation
Base Product Number W7281-8
Standard Package 25
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4020
Win Source Part Number 1349897-W7281-8PG-P-3ES
Ultra Librarian 3D Model Ultra Librarian W7281-8PG-P-3ES CAD Model

Description

The W7281-8PG-P-3ES is a circular connector assembly from Conxall/Switchcraft.

  • Manufacturer: Conxall/Switchcraft
  • Positions: 8
  • Type: Male Pin Receptacle
  • Fastening Type: Bayonet Lock
  • Ingress Protection: IP66/IP67/IP68 (Dust Tight, Water Resistant, Waterproof)
  • Voltage Rating: 300VAC/DC
  • UV Resistant: Yes
  • Material: Thermoplastic
  • Flammability Rating: UL94V-0
  • Temperature Range: -40°C to 85°C
  • Packaging: Bulk
