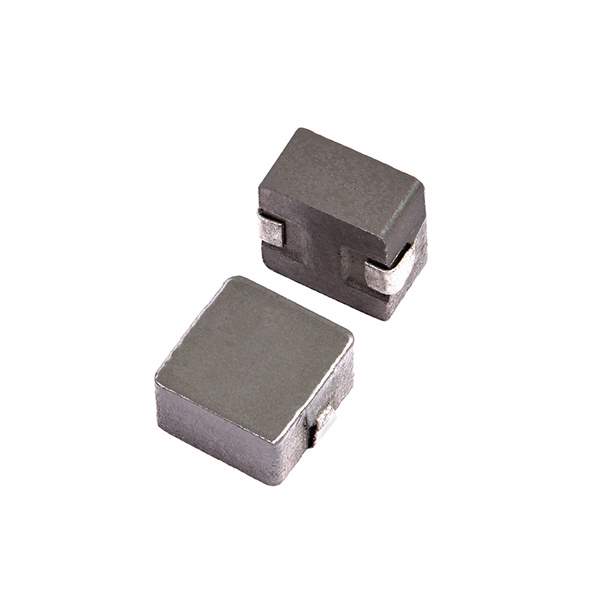

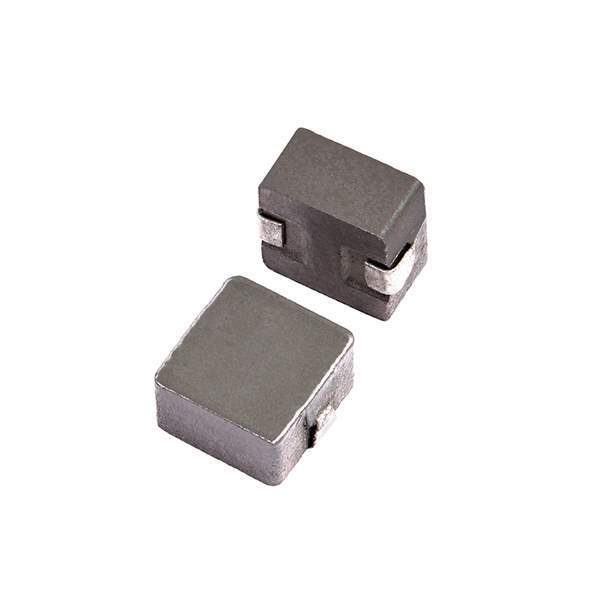

HCM0503-R20-R Real Image
Same model may have multiple batches, images only for reference.

HCM0503-R20-R

Part No HCM0503-R20-R
Manufacturer Cooper Bussmann, Inc.
Catalog Fixed Inductors
Description FIXED IND 200NH 22.2A 2.31 MOHM / High current power inductors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Eaton - Electronics Division
Packaging Reel
Type Wirewound
Material - Core Iron Powder
Inductance 200nH
Tolerance ±20%
Current Rating (Amps) 22.2A
Current - Saturation 21A
Shielding Shielded
DC Resistance (DCR) 2.31mOhm Max
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100kHz
Mounting Style SMD
Manufacturer Package 2020 (5050 Metric)
Dimension 0.203" L x 0.201" W (5.15mm x 5.10mm)
Height - Seated (Maximum) 0.118" (3.00mm)
Manufacturer Pack Quantity 2,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 806947-HCM0503-R20-R
Ultra Librarian 3D Model Ultra Librarian HCM0503-R20-R CAD Model

Description

The 806947-HCM0503-R20-R wirewound inductor from Eaton - Electronics Division is reel-mounted and shielded.

  • Core Material: iron powder
  • Inductance: 200nH
  • Tolerance: ±20%
  • DC Resistance (DCR): 2.31mOhm Max
  • Current Saturation: 21A
  • Category: Inductors, Coils, Chokes
  • Popularity: medium
  • Temperature Range: -55°C ~ 125°C
  • Height: 0.118" (3.00mm)
  • Dimension: 0.203" L x 0.201" W (5.15mm x 5.10mm)
  • Current Rating: 22.2A
  • Inductance Frequency-Test: 100kHz
