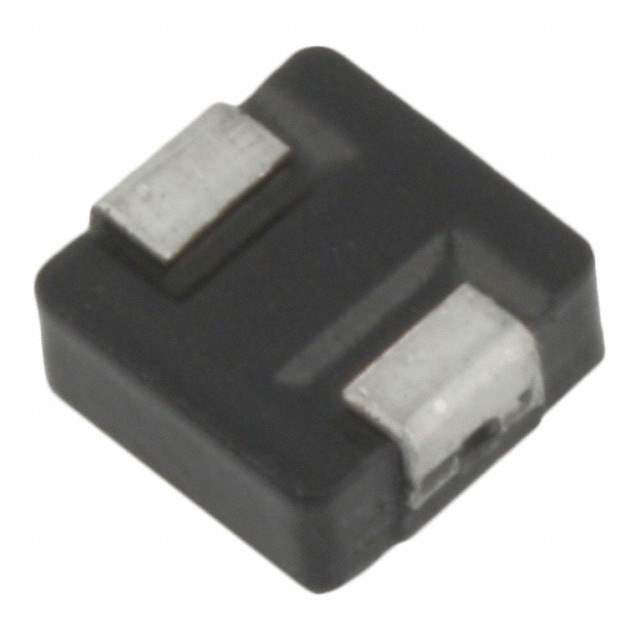

HCM0703-R47-R Real Image
Same model may have multiple batches, images only for reference.

HCM0703-R47-R

Part No HCM0703-R47-R
Manufacturer Cooper Bussmann, Inc.
Catalog Fixed Inductors
Description High Current, Power Inductors | FIXED IND 470NH 17.5A 4.2 MOHM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Eaton - Electronics Division
Packaging Reel
Type Wirewound
Material - Core Iron Powder
Inductance 470nH
Tolerance ±20%
Current Rating (Amps) 17.5A
Current - Saturation 26A
Shielding Shielded
DC Resistance (DCR) 4.2mOhm Max
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100kHz
Mounting Style SMD
Manufacturer Package Nonstandard
Parts Dimension 0.280" L x 0.260" W (7.10mm x 6.60mm)
Height - Seated (Maximum) 0.118" (3.00mm)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1178968-HCM0703-R47-R
Manufacturer Homepage www.cooperbussmann.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian HCM0703-R47-R CAD Model

Description

The HCM0703-R47-R is a wirewound inductor manufactured by Eaton - Electronics Division. It is a medium popularity product with a balanced supply and demand status in the market. The HCM0703-R47-R is a wirewound inductor manufactured by Eaton - Electronics Division. It is a medium popularity product with a balanced supply and demand status in the market.

  • Inductor Type: Wirewound
  • Shielded: Shielded
  • Mounting Style: SMD
  • Inductance: 470nH
  • Tolerance: ±20%
  • Current-Saturation: 26A
  • DC Resistance: 4.2mOhm Max
  • Operating Temperature Range: -55°C ~ 125°C
  • Win Source Part Number: 1178968
