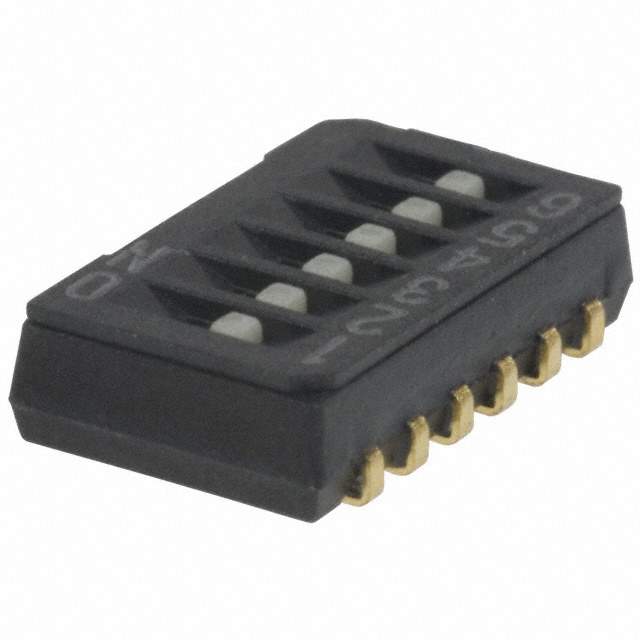

CHS-06TA

Part No CHS-06TA
Manufacturer Copal Electronics Inc.
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 100MA 6V
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer Copal Electronics Inc.
Packaging Reel - TR
Status Active
Circuit SPST
Number of Positions 6
Current Rating 100mA
Voltage Rating 6VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Finish Gold
Height Above Board 0.098" (2.50mm)
Mounting SMD (SMT)
Termination Style J Lead
Pitch 0.050" (1.27mm), Half
Washable Yes
Features Tape Seal
Body Material Polyphenylene Sulfide (PPS)
Length 0.362" (9.20mm)
Temperature Range - Operating -40°C to 85°C
Electrical Life 2,000 Cycles
Win Source Part Number 050297-CHS-06TA
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CHS-06TA CAD Model

Description

Product Overview

The CHS-06TA component is engineered to deliver exceptional performance in high-demand electronic applications. Its robust design and seamless compatibility make it a critical element in the development of reliable and efficient electronic devices.

Key Features and Benefits

  • High-performance capability suitable for intensive electronic applications.
  • Robust design ensures stability and reliability under varied operational conditions.
  • Compact size makes it an easy fit for space-constrained projects.
  • Low power consumption helps extend the lifecycle of your projects.

Applications

  • Automated systems
  • High-frequency devices
  • Industrial electronics
  • Renewable energy projects

The CHS-06TA offers a perfect blend of efficiency and versatility, making it suitable for a wide range of electronic applications, from small-scale projects to complex industrial solutions.
