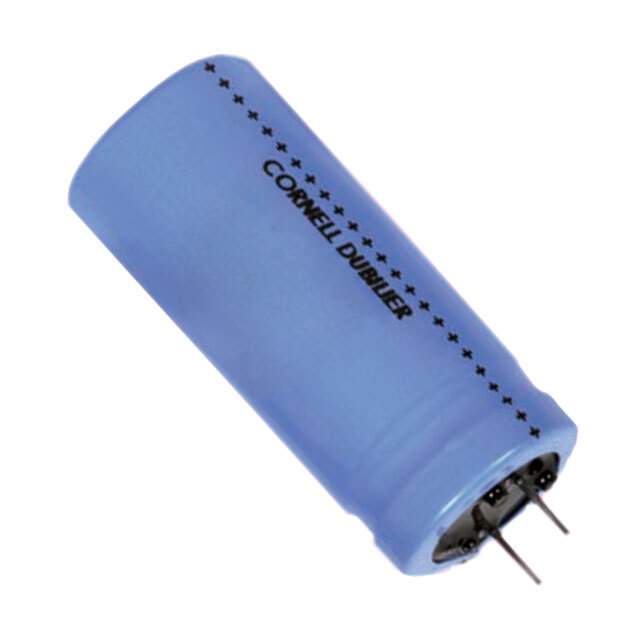

301R562U063JT2 Real Image
Same model may have multiple batches, images only for reference.

301R562U063JT2

Part No 301R562U063JT2
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Aluminum Capacitors
Description CAP ALUM 5600UF 63V RADIAL / 5600 µF 63 V Aluminum Electrolytic Capacitors Radial, Can 19mOhm @ 120Hz 4000 Hrs @ 85°C
Datasheet
301R562U063JT2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Manufacturer Cornell Dubilier Electronics (CDE)
Packaging Tray
Capacitance 5600 µF
Tolerance -10%, +75%
Voltage - Rated 63 V
ESR (Equivalent Series Resistance) 19mOhm @ 120Hz
Lifetime @ Temp. 4000 Hrs @ 85°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Applications General Purpose
Lead Spacing 0.400" (10.16mm)
Size / Dimension 1.000" Dia (25.40mm)
Height - Seated (Max) 3.625" (92.08mm)
Mounting Through Hole
Case / Package Radial, Can
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.22.0040
Other Part Number 338-3897
Standard Package 192
Win Source Part Number 1328905-301R562U063JT2
Ultra Librarian 3D Model Ultra Librarian 301R562U063JT2 CAD Model

Description

The Cornell Dubilier Electronics (CDE) 1328905-301R562U063JT2 is an aluminum electrolytic capacitor.

  • Manufacturer: Cornell Dubilier Electronics (CDE)
  • Product Name: 1328905-301R562U063JT2
  • Capacitor Type: Aluminum Electrolytic Capacitor
  • Series: SEK
  • Capacitance: 5600 µF
  • Tolerance: -10%, +75%
  • Voltage Rating: 63 V
  • Lead Spacing: 0.400" (10.16mm)
  • ESR (Equivalent Series Resistance): 19mOhm @ 120Hz
  • Lifetime: 4000 Hrs @ 85°C
  • Polarity: Polarized
  • Package/Case: Radial, Can
  • Operating Temperature: -55°C ~ 105°C
  • Diameter: 1.000" Dia (25.40mm)
  • Application: General-Purpose
