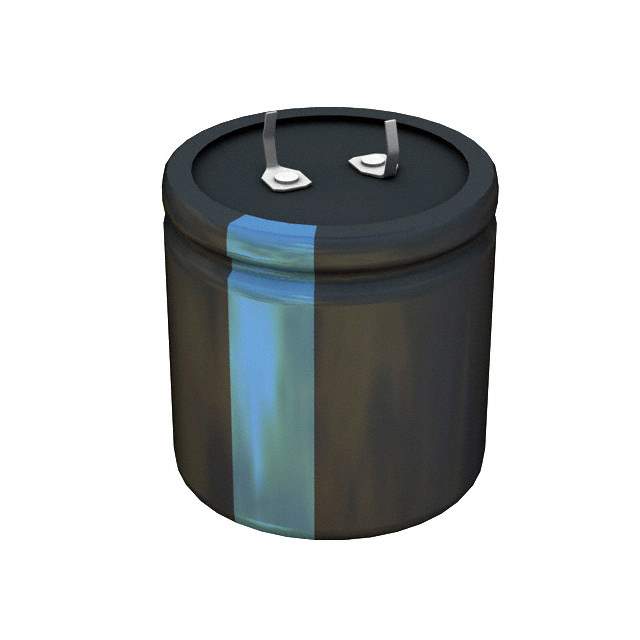

Same model may have multiple batches, images only for reference.

380LQ122M250A032

Name: 380LQ122M250A032
Brand: Cornell Dubilier Electronics (CDE)
SKU: 1339517
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	380LQ122M250A032
Manufacturer	Cornell Dubilier Electronics (CDE)
Catalog	Aluminum Capacitors
Description	CAP ALUM 1200UF 20% 250V SNAP / 1200 µF 250 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 166mOhm @ 120Hz 2000 Hrs @ 85°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Cornell Dubilier Electronics (CDE)
Series	380LQ
Package	Bulk
Capacitance	1200 µF
Tolerance	±20%
Voltage - Rated	250 V
ESR (Equivalent Series Resistance)	166mOhm @ 120Hz
Lifetime @ Temp.	2000 Hrs @ 85°C
Temperature Range - Operating	-40°C ~ 85°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	3.53 A @ 120 Hz
Ripple Current @ High Frequency	4.94 A @ 20 kHz
Lead Spacing	0.394" (10.00mm)
Size / Dimension	1.378" Dia (35.00mm)
Height - Seated (Max)	1.457" (37.00mm)
Mounting Type	Through Hole
Package / Case	Radial, Can - Snap-In
Standard Package	80
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0040
California Prop 65	Warning Information
Win Source Part Number	1339517-380LQ122M250A032
Ultra Librarian 3D Model	Ultra Librarian 380LQ122M250A032 CAD Model

Alternative Products

Description

The Cornell Dubilier Electronics (CDE) 380LQ series aluminum electrolytic capacitor is an ideal choice for general purpose applications.

Capacitance: 1200 µF
Voltage Rating: 250 V
Package: through-hole radial, can - snap-in
Operating Temperature: -40°C to 85°C
ESR: 166mOhm @ 120Hz
Lifetime: 2000 hours @ 85°C
Part Number: 380LQ122M250A032
Standard Package: 80
Lead Spacing: 0.394" (10.00mm)
Dimensions: 1.378" Dia (35.00mm) and a height of 1.457" (37.00mm)
