Same model may have multiple batches, images only for reference.

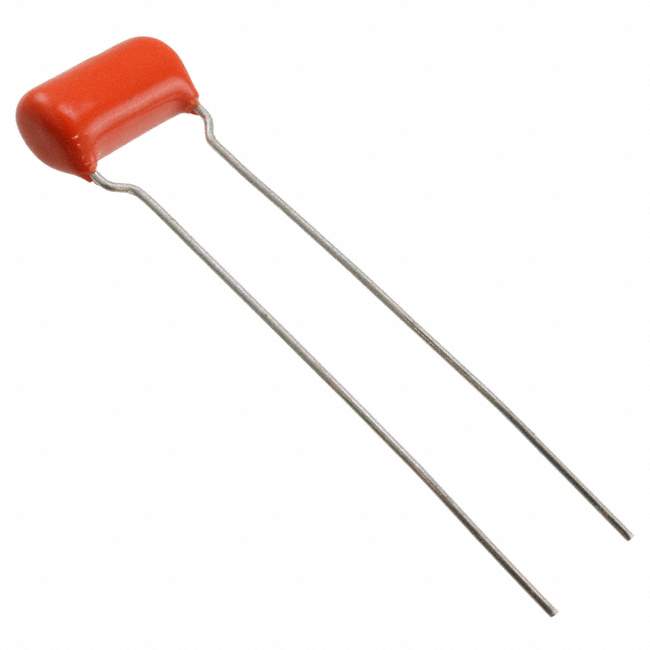

715P22256JD3 Real Image
Same model may have multiple batches, images only for reference.

715P22256JD3

Part No 715P22256JD3
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Film Capacitors
Description CAP FILM 2200PF 5% 600VDC RADIAL  /  2200 pF Film Capacitor 200V 600V Polypropylene (PP), Metallized Radial
Datasheet
715P22256JD3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr Cornell Dubilier Electronics (CDE)
Series Orange Drop® 715P
Package Bulk
Capacitance 2200 pF
Tolerance ±5%
Voltage Rating - AC 200V
Voltage Rating - DC 600V
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -55°C ~ 85°C
Mounting Type Through Hole
Package / Case Radial
Dimension 0.331" Dia x 0.701" L (8.40mm x 17.80mm)
Height - Seated (Max) 0.622" (15.80mm)
Termination PC Pins
Lead Spacing 0.375" (9.52mm)
Applications Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0070
Other Names 2266-715P22256JD3,338-3442
Standard Package 100
Win Source Part Number 1019926-715P22256JD3
Ultra Librarian 3D Model Ultra Librarian 715P22256JD3 CAD Model

Description

The 715P22256JD3 capacitor is a film capacitor from Cornell Dubilier Electronics.

  • Capacitance: 2200 pF
  • Voltage Rating: 200V AC, 600V DC
  • Package: Radial
  • Lead Spacing: 0.375" (9.52mm)
  • Dielectric Material: Polypropylene (PP), Metallized
  • Series: Orange Drop® 715P
  • Applications: Audio, High Frequency, Switching, High Pulse, DV/DT, Snubber
  • Lifetime Temperature: -55°C ~ 85°C
  • Operating Temperature Range: -55°C ~ 85°C
  • Dimension: 0.331" Dia x 0.701" L (8.40mm x 17.80mm)
