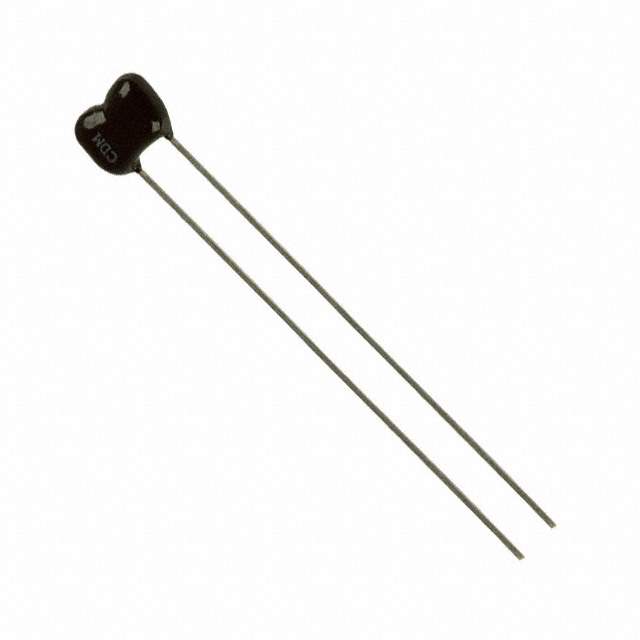

CD4ED220JO3F Real Image
Same model may have multiple batches, images only for reference.

CD4ED220JO3F

Part No CD4ED220JO3F
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Mica and PTFE Capacitors
Description CAP MICA 22PF 5% 500V RADIAL
Datasheet
CD4ED220JO3F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Cornell Dubilier Electronics (CDE)
Packaging Bulk
Status Active
Capacitance 22pF
Tolerance ±5%
Voltage Rating 500V
Dielectric Material Mica
Temperature Range - Operating -55°C to 125°C
Mounting Through Hole
Lead Spacing 0.098" (2.50mm)
Features RF, High Frequency
Height - Seated (Max) 0.220" (5.60mm)
Win Source Part Number 1050182-CD4ED220JO3F
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CD4ED220JO3F CAD Model

Description

The Cornell Dubilier Electronics (CDE) CD4ED220JO3F is a through-hole mica capacitor with a capacitance of 22pF and a ±5% tolerance.

  • Voltage Rating: 500V
  • Lead Spacing: 0.098" (2.50mm)
  • Application: High-frequency and RF
  • Temperature Range: -55°C to 125°C
  • Height: 0.220" (5.60mm)
  • Mounting Type: Through Hole
