Same model may have multiple batches, images only for reference.

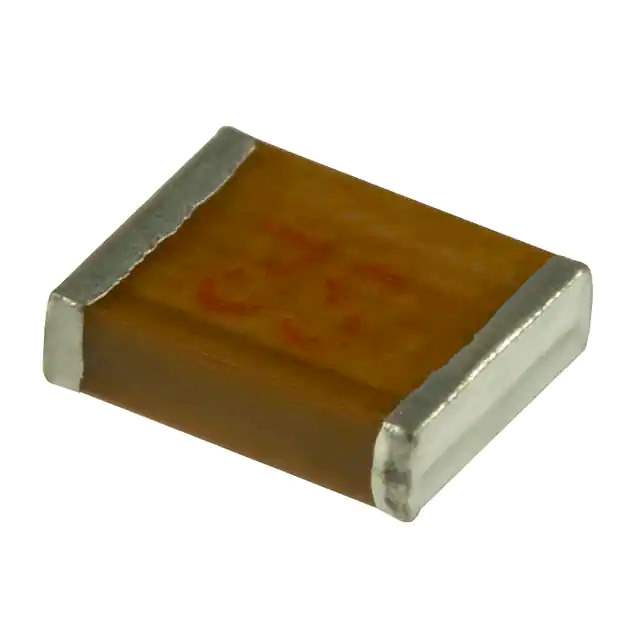

MC18FA681F-TF Real Image
Same model may have multiple batches, images only for reference.

MC18FA681F-TF

Part No MC18FA681F-TF
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Mica and PTFE Capacitors
Description CAP MICA 680PF 1% 100V 1812 / 680 pF Mica Capacitor 100 V 1812 (4532 Metric)
Datasheet
MC18FA681F-TF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Mica and PTFE Capacitors
Mfr Cornell Dubilier Electronics (CDE)
Series MC
Package Tape & Reel
Product Status Active
Capacitance 680 pF
Tolerance ±1%
Voltage - Rated 100 V
Dielectric Material Mica
Temperature Range - Operating -55°C ~ 125°C
Mounting Type Surface Mount
Package / Case 1812 (4532 Metric)
Features RF, High Q, Low Loss
Size / Dimension 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) 0.079" (2.00mm)
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.29.0020
Win Source Part Number 926113-MC18FA681F-TF
Ultra Librarian 3D Model Ultra Librarian MC18FA681F-TF CAD Model

Description

The MC18FA681F-TF is a mica and PTFE capacitor designed for RF applications. Manufactured by Cornell Dubilier Electronics (CDE), this capacitor is part of the MC series known for its high Q and low loss characteristics.

  • Capacitance: 680 pF
  • Tolerance: ±1%
  • Voltage Rating: 100 V
  • Package: 1812 (4532 Metric), Surface Mount
  • Temperature Range: -55°C to 125°C
  • Packaging: Tape and Reel
  • Quantity per Reel: 1,000 pieces
  • Status: Active
