Same model may have multiple batches, images only for reference.

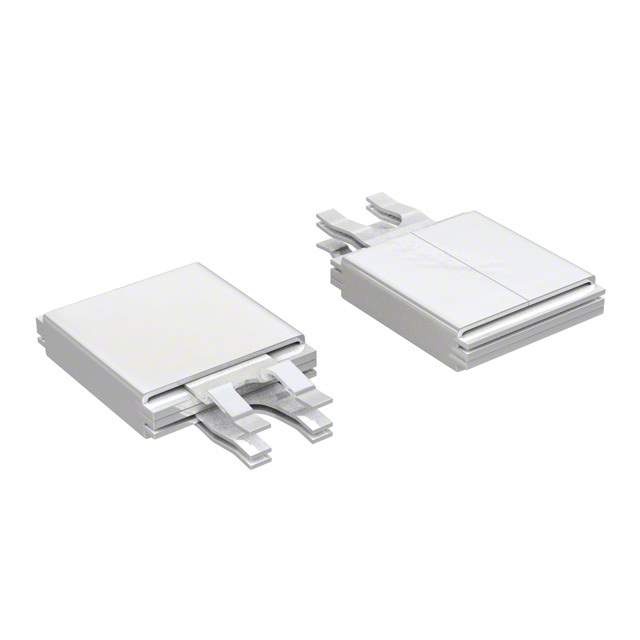

MCM01-010DD560G-F Real Image
Same model may have multiple batches, images only for reference.

MCM01-010DD560G-F

Part No MCM01-010DD560G-F
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Mica and PTFE Capacitors
Description CAP MICA 56PF 2% 500V SMD / Cap Mica 56pF 500V 2% (10.16 X 12.7mm) Radial 200°C Medical Bulk
Datasheet
MCM01-010DD560G-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Cornell Dubilier Electronics (CDE)
Series MCM01
Packaging Bulk
Capacitance 56pF
Tolerance ±2%
Voltage Rating DC 500V
Dielectric Material Mica
Operating Temperature Range -55°C ~ 200°C
Mounting SMD
Package Nonstandard SMD
Features RF, High Frequency
Dimension 0.500" L x 0.400" W (12.70mm x 10.16mm)
Win Source Part Number 777875-MCM01-010DD560G-F
Popularity Medium
Supply and Demand Status Limited
Family Name MCM01
Introduction Date July 13, 2005
ECCN EAR99
Country of Origin Mexico, United States of America
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian MCM01-010DD560G-F CAD Model

Description

The Cornell Dubilier Electronics (CDE) 777875-MCM01-010DD560G-F is a member of the MCM01 series and is packaged in bulk.

  • Series: MCM01
  • Packaging: Bulk
  • Capacitance: 56pF
  • Tolerance: ±2%
  • Dielectric Material: Mica
  • RoHS Compliant: Yes
  • Voltage Rating DC: 500V
  • Temperature Range: -55°C to 200°C
  • Package Type: Nonstandard SMD
  • Mounting Type: SMD
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Length: 0.500" (12.70mm)
  • Width: 0.400" (10.16mm)
  • ECCN: EAR99
  • Country of Origin: Mexico and the United States of America
  • Estimated EOL Date: 2027
