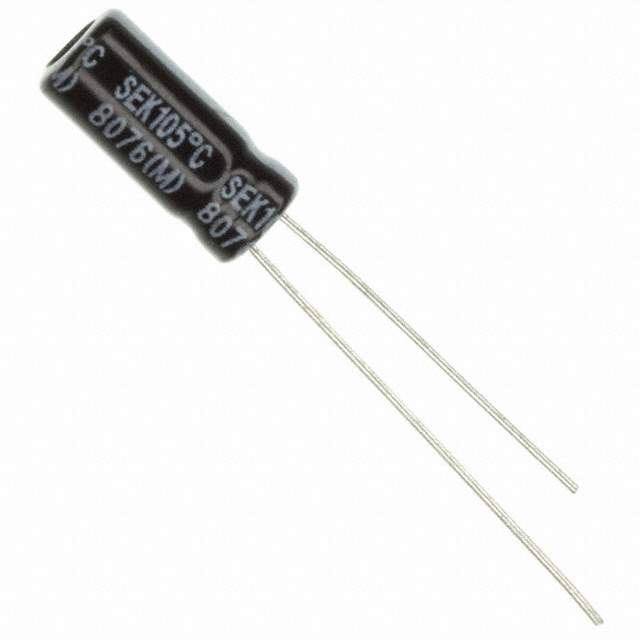

Same model may have multiple batches, images only for reference.

SEK220M025ST

Name: SEK220M025ST
Brand: Cornell Dubilier Electronics (CDE)
SKU: 1308394
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	SEK220M025ST
Manufacturer	Cornell Dubilier Electronics (CDE)
Catalog	Aluminum Capacitors
Datasheet	SEK220M025ST Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Cornell Dubilier Electronics (CDE)
Series	SEK
Package	Bulk
Capacitance	22 µF
Tolerance	±20%
Voltage - Rated	25 V
ESR (Equivalent Series Resistance)	9.65Ohm
Lifetime @ Temp.	2000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Applications	General Purpose
Lead Spacing	0.079" (2.00mm)
Dimension	0.197" Dia (5.00mm)
Height - Seated (Max)	0.512" (13.00mm)
Mounting Type	Through Hole
Package / Case	Radial, Can
Other Names	338-1727,SEK220M025ST
Standard Package	1,000
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1308394-SEK220M025ST
Ultra Librarian 3D Model	Ultra Librarian SEK220M025ST CAD Model

Alternative Products

Description

The Cornell Dubilier Electronics (CDE) SEK series aluminum electrolytic capacitor is a high-quality component designed for general-purpose applications.

Series: SEK series
Capacitance: 22 µF
Voltage Rating: 25 V
Application: Perfect for use in a variety of electronic projects
Tolerance: ±20%
ESR: 9.65 Ohm
Lifetime: 2000 hours at 105°C
Polarization: Not polarized
Package: Radial can type
Mounting: Through-hole mounting type
Dimension: 0.197" Dia (5.00mm)
Temperature Range: -55°C to 105°C
