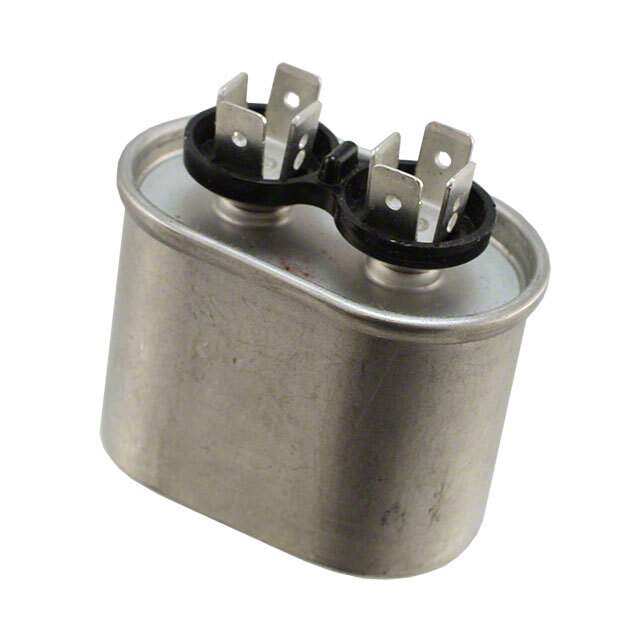

SFA44S3K156B-F Real Image
Same model may have multiple batches, images only for reference.

SFA44S3K156B-F

Part No SFA44S3K156B-F
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Film Capacitors
Datasheet
SFA44S3K156B-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr Cornell Dubilier Electronics (CDE)
Series SF
Package Bulk
Product Status Obsolete
Capacitance 3 µF
Tolerance ±10%
Voltage Rating - AC 440V
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -40°C ~ 70°C
Mounting Type Chassis Mount, Requires Holder/Bracket
Package / Case Radial, Can
Dimension 2.160" L x 1.310" W (54.86mm x 33.27mm), Lip
Height - Seated (Max) 1.680" (42.67mm)
Termination Quick Connect, Disconnect
Lead Spacing 0.810" (20.57mm)
Applications Motor Run
Standard Package 126
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0020
Win Source Part Number 1302493-SFA44S3K156B-F
Ultra Librarian 3D Model Ultra Librarian SFA44S3K156B-F CAD Model

Description

This SF series film capacitor is designed for motor run applications.

  • Capacitance: 3 µF
  • Tolerance: ±10%
  • Voltage Rating (AC): 440V
  • Mounting: Chassis Mount (requires holder/bracket)
  • Dielectric Material: Polypropylene (PP) and Metallized
  • Package/Case: Radial, Can
  • Lead Spacing: 0.810" (20.57mm)
  • Dimension: 2.160" L x 1.310" W (54.86mm x 33.27mm), lip
  • Temperature Range: -40°C to 70°C
  • Standard Package: 126
  • Manufacturer: Cornell Dubilier Electronics (CDE)
  • Product Status: Obsolete
