Same model may have multiple batches, images only for reference.

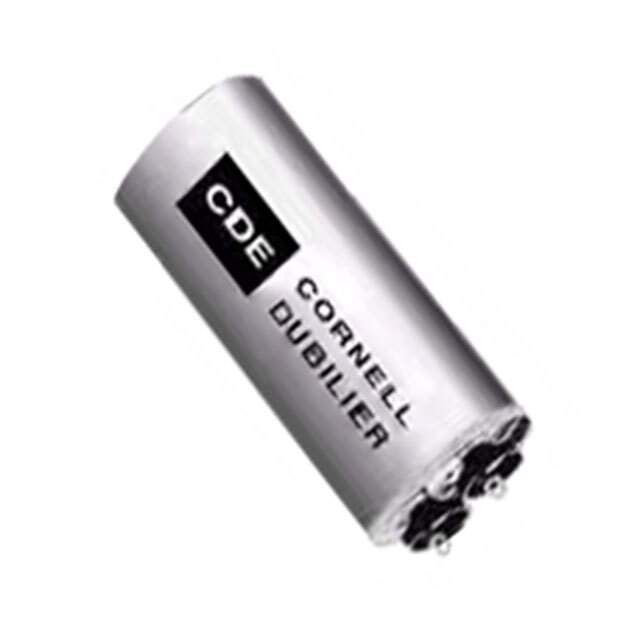

SNU102K205R-F Real Image
Same model may have multiple batches, images only for reference.

SNU102K205R-F

Part No SNU102K205R-F
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Film Capacitors
Datasheet
SNU102K205R-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr Cornell Dubilier Electronics (CDE)
Series SNU
Capacitance 2 µF
Tolerance ±10%
Voltage Rating - AC 1000Vpk (1KVPK)
Dielectric Material Paper, Metallized
Temperature Range - Operating -50°C ~ 70°C
Mounting Type Chassis Mount
Package / Case Radial, Can
Dimension 2.100" L x 1.810" W (53.34mm x 45.97mm)
Height - Seated (Max) 3.130" (79.50mm)
Termination Solder Lug
Lead Spacing 0.810" (20.57mm)
Applications High Pulse, DV/DT; Snubber
Standard Package 10
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.25.0040
Win Source Part Number 1302434-SNU102K205R-F
Ultra Librarian 3D Model Ultra Librarian SNU102K205R-F CAD Model

Description

The Cornell Dubilier Electronics (CDE) SNU series film capacitor is designed for high pulse and snubber applications.

  • Capacitance: 2 µF
  • Tolerance: ±10%
  • Voltage Rating (AC): 1000Vpk (1KVPK)
  • Dielectric Material: Paper and metallized
  • Mounting Type: Chassis Mountable
  • Package/Case: Radial, Can
  • Height: 3.130" (79.50mm)
  • Lead Spacing: 0.810" (20.57mm)
  • Operating Temperature: -50°C to 70°C
  • Applications: High pulse and snubber applications
