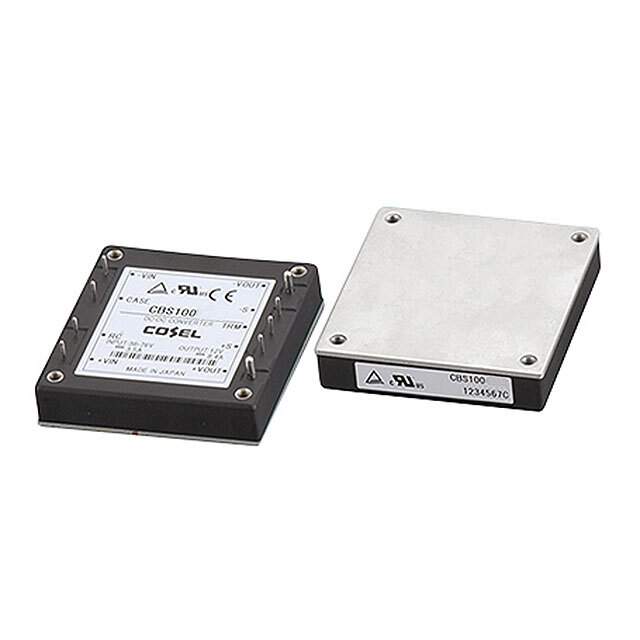

CBS1002403 Real Image
Same model may have multiple batches, images only for reference.

CBS1002403

Part No CBS1002403
Manufacturer Cosel USA, Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 3.3V 77W
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Estimated Pruduction Lead Time 5 Weeks
Features Isolated Module DC DC Converter Output 3.3V - - - 23.4A 18V - 36V Input
Manufacturer Cosel USA, Inc.
Series CBS (100W)
Package Box
Operating Temperature Range -40°C ~ 100°C (With Derating)
Mounting Through Hole
Package Half Brick
Case / Package Half Brick
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 1776-2025, CBS1002403-ND
Quantity per package 1
Popularity High
Supply and Demand Status Balance
Win Source Part Number 914810-CBS1002403
Ultra Librarian 3D Model Ultra Librarian CBS1002403 CAD Model

Description

The CBS1002403 by Cosel USA, Inc. is an isolated module DC DC converter output with a power output of 100W.

  • Temperature Range: -40°C to 100°C (with derating)
  • Input Voltage: 18V to 36V
  • Package: half brick package
  • Mounting: through hole
  • Series: CBS (100W)
  • Popularity: popular in the market
  • Estimated Production Lead Time: 5 weeks
