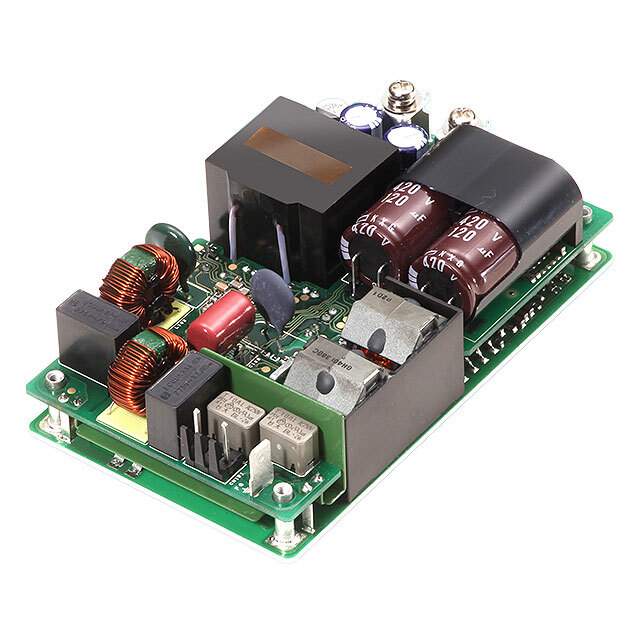

GHA300F-24-J1 Real Image
Same model may have multiple batches, images only for reference.

GHA300F-24-J1

Part No GHA300F-24-J1
Manufacturer Cosel USA, Inc.
Catalog External/Internal (Off - Board) AC DC Converters
Description AC/DC CONVERTER 24V 100W / Open Frame AC DC Converters 1 Output 24V 90 ~ 264 VAC Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board) - AC DC Converters
Mfr Cosel USA, Inc.
Series GHA (300W)
Package Box
Type Open Frame
Number of Outputs 1
Voltage - Input 90 ~ 264 VAC
Voltage - Output 1 24V
Current - Output 1 4.2 A
Power (Watts) 100W (300W Forced Air)
Applications ITE (Commercial) , Medical
Voltage - Isolation 4 kV
Efficiency 91%
Temperature Range - Operating -20°C ~ 80°C (With Derating)
Features Adjustable Output, PFC, Universal Input
Mounting Type Chassis Mount
Size / Dimension 5.00" L x 3.00" W x 1.38" H (127.0mm x 76.2mm x 35.0mm)
Approval Agency CE, cURus, DEMKO
Minimum Load Required No
Base Product Number GHA300F
Standard Package 1
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.9530
California Prop 65 Warning Information
Win Source Part Number 1340431-GHA300F-24-J1
Ultra Librarian 3D Model Ultra Librarian GHA300F-24-J1 CAD Model

Description

The GHA300F-24-J1 is a 300W open frame AC-DC converter from Cosel USA, Inc.

  • Applications: ITE (Commercial) and Medical
  • Standard Package: 1
  • Power Output: 100W (300W Forced Air)
  • Efficiency: 91%
  • Voltage Isolation: 4 kV
  • Number of Outputs: 1
  • Voltage - Output: 24V
  • Current - Output: 4.2A
  • Voltage - Input: 90 ~ 264 VAC
  • Mounting Type: Chassis Mount
  • Operating Temperature: -20°C to 80°C (With Derating)
  • MSL Level: Not Applicable
  • HTSUS: 8504.40.9530
  • Approvals: CE, cURus, DEMKO
  • California Prop 65 Warning Information: Applies
