Same model may have multiple batches, images only for reference.

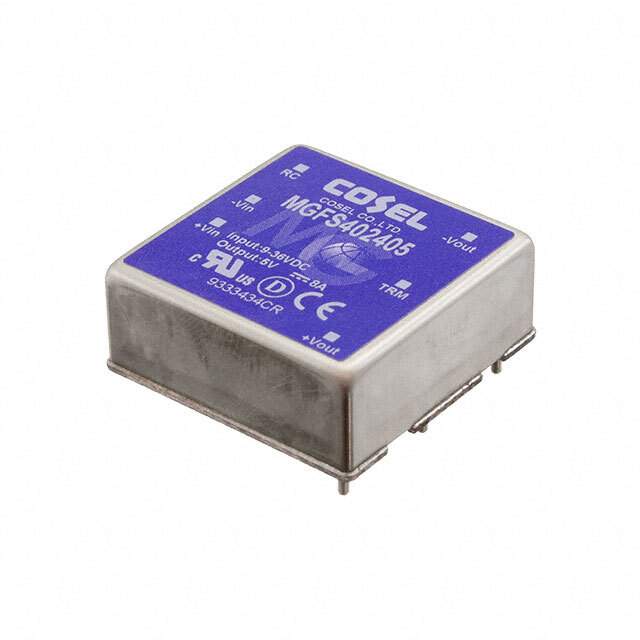

MGFS402405 Real Image
Same model may have multiple batches, images only for reference.

MGFS402405

Part No MGFS402405
Manufacturer Cosel USA, Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 40W / Isolated Module DC DC Converter 1 Output 5V 8A 9V - 36V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Cosel USA, Inc.
Series MGFS (40W)
Package Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 9V
Voltage - Input (Max) 36V
Voltage - Output 1 5V
Current - Output (Max) 8A
Power (Watts) 40 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 91%
Mounting Type Through Hole
Package / Case 6-DIP Module
Size / Dimension 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
Control Features Enable, Active Low
Approval Agency CE, cURus, DEMKO
Standard Package 1
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.9580
California Prop 65 Warning Information
Win Source Part Number 1341381-MGFS402405
Ultra Librarian 3D Model Ultra Librarian MGFS402405 CAD Model

Description

The MGFS402405 is a 40W isolated module DC-DC converter from Cosel USA, Inc.

  • Function: Board Mount DC-DC Converter
  • Features: Enable, Active Low Control
  • Package: Tube
  • Dimension: 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
  • Application: ITE (Commercial)
  • Power: 40 W
  • Output: 1
  • Maximum Output Current: 8A
  • Input Voltage: 9V to 36V
  • Efficiency: 91%
  • Mounting Type: Through Hole
  • Voltage Isolation: 1.5 kV
  • Voltage Output: 5V
  • MSL Level: Not Applicable
  • HTSUS: 8504.40.9580
