Same model may have multiple batches, images only for reference.

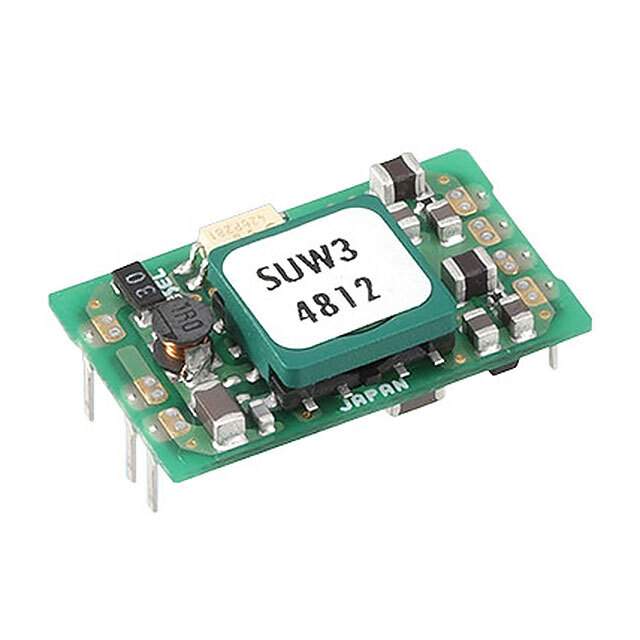

SUW32412C Real Image
Same model may have multiple batches, images only for reference.

SUW32412C

Part No SUW32412C
Manufacturer Cosel USA, Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V / Isolated Module DC DC Converter 2 Output 12V -12V 130mA, 130mA 18V - 36V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Cosel USA, Inc.
Series SUW (3W)
Package Box
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 18V
Voltage - Input (Max) 36V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 130mA, 130mA
Voltage - Isolation 500 V
Applications ITE (Commercial)
Features Remote On/Off, OCP
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 78%
Mounting Type Through Hole
Package / Case 7-DIP Module
Size / Dimension 0.94" L x 0.59" W x 0.26" H (24.0mm x 15.1mm x 6.5mm)
Base Product Number SUW32412
Standard Package 1
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.9580
California Prop 65 Warning Information
Win Source Part Number 1339274-SUW32412C
Ultra Librarian 3D Model Ultra Librarian SUW32412C CAD Model

Description

The SUW32412C is a 3W isolated module DC-DC converter from Cosel USA, Inc.

  • Manufacturer: Cosel USA, Inc.
  • Product Name: SUW32412C
  • Power: 3W
  • Converter Type: Isolated Module, DC-DC
  • Application: Power Supplies Board Mount DC-DC Converters
  • Features: Remote On/Off, OCP (Over Current Protection)
  • Package Type: Box
  • Dimensions: 0.94" L x 0.59" W x 0.26" H (24.0mm x 15.1mm x 6.5mm)
  • Application: ITE (Commercial)
  • Voltage Isolation: 500 V
  • Number of Outputs: 2
  • Output Current: 130mA, 130mA
  • Input Voltage: 18V to 36V
  • Efficiency: 78%
  • Mounting Type: Through Hole
  • MSL Level: Not Applicable
  • HTSUS: 8504.40.9580
