Same model may have multiple batches, images only for reference.

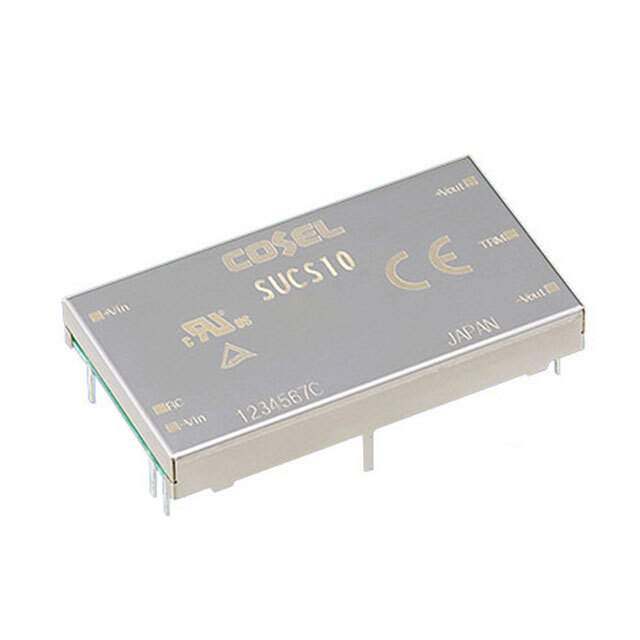

SUCS104815C Real Image
Same model may have multiple batches, images only for reference.

SUCS104815C

Part No SUCS104815C
Manufacturer Cosel USA, Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 15V  /  Isolated Module DC DC Converter 1 Output 15V 800mA 36V - 76V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Cosel USA, Inc.
Series SUCS (10W)
Package Box
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 36V
Voltage - Input (Max) 76V
Voltage - Output 1 15V
Current - Output (Max) 800mA
Voltage - Isolation 500 V
Applications ITE (Commercial)
Features Remote On/Off, OCP
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 87%
Mounting Type Through Hole
Package / Case 6-DIP Module
Dimension 1.58" L x 0.85" W x 0.28" H (40.2mm x 21.5mm x 7.0mm)
Base Product Number SUCS104815
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.9580
Other Names 1776-1586
Standard Package 1
Win Source Part Number 1217330-SUCS104815C
Ultra Librarian 3D Model Ultra Librarian SUCS104815C CAD Model

Description

The Cosel USA, Inc. electronic component is a high-quality and reliable product that is perfect for various electronic applications.

  • Product Type: Power Supply - Board Mount > DC DC Converter
  • Voltage Isolation: 500 V
  • Current Output (Max): 800mA
  • Voltage Input (Min): 36V
  • Voltage Input (Max): 76V
  • Voltage Output 1: 15V
  • Efficiency: 87%
  • Mounting Type: Through-Hole
  • Package/Case: 6-DIP Module
  • Operating Temperature: -40°C ~ 85°C (with derating)
  • Dimension: 1.58" L x 0.85" W x 0.28" H (40.2mm x 21.5mm x 7.0mm)
  • Win Source Part Number: 1217330-SUCS104815C
