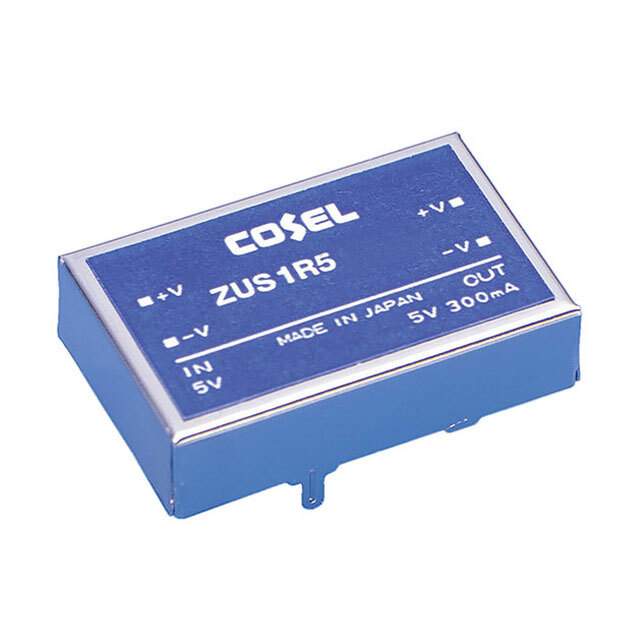

Same model may have multiple batches, images only for reference.

ZUS1R54812

Name: ZUS1R54812
Brand: Cosel USA, Inc.
SKU: 800421
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	ZUS1R54812
Manufacturer	Cosel USA, Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 12V / Module DC-DC 48VIN 1-OUT 12V 0.13A 1.56W 4-Pin
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Power Supplies - Board Mount
Manufacturer	Cosel USA, Inc.
Series	ZUS
Type	Isolated Module
Number of Outputs	1
Input Voltage MIN	36V
Voltage Input MAX	72V
Voltage - Output 1	12V
Current - Output (Maximum)	130mA
Voltage - Isolation	500V
Applications	ITE (Commercial)
Features	OCP
Operating Temperature Range	-20°C ~ 71°C (With Derating)
Efficiency	73%
Mounting Style	Through Hole
Package	4-DIP Module
Dimension	1.08" L x 0.71" W x 0.28" H (27.5mm x 18.0mm x 7.0mm)
Win Source Part Number	800421-ZUS1R54812
Popularity	Medium
Supply and Demand Status	Limited
Family Name	ZUS1R54812
Introduction Date	May 06, 2007
Country of Origin	Japan
Estimated EOL Date	2027
Ultra Librarian 3D Model	Ultra Librarian ZUS1R54812 CAD Model

Alternative Products

Description

The Cosel USA ZUS1R54812 is an Isolated Module with Through Hole mounting style.

Mounting Type: Through Hole
Applications: ITE (Commercial)
Input Voltage Range: 36V to 72V
Features: OCP
Output Voltage: 12V
Maximum Output Current: 130mA
Isolation Voltage: 500V
Efficiency: 73%
Operating Temperature Range: -20°C to 71°C (With Derating)
Package: 4-DIP Module
Dimensions: 1.08" L x 0.71" W x 0.28" H (27.5mm x 18.0mm x 7.0mm)
