Same model may have multiple batches, images only for reference.

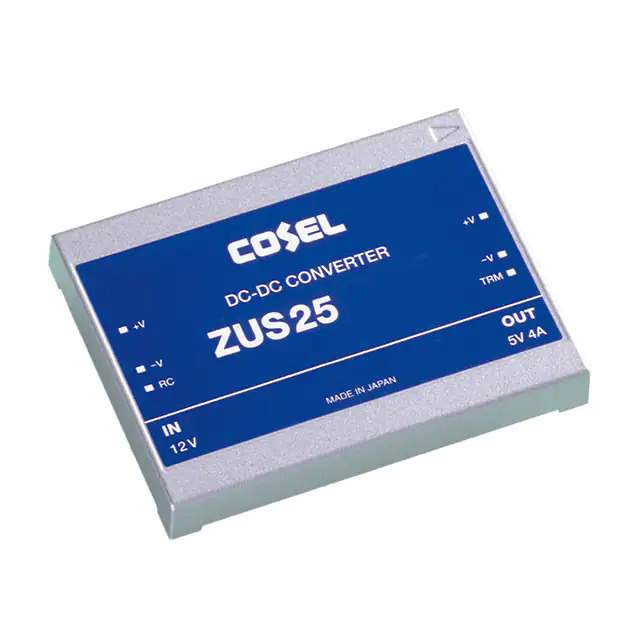

ZUS252412 Real Image
Same model may have multiple batches, images only for reference.

ZUS252412

Part No ZUS252412
Manufacturer Cosel USA, Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 12V / Isolated Module DC DC Converter 1 Output 12V 2.1A 18V - 36V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Cosel USA, Inc.
Series ZUS (25W)
Package Box
Product Status Obsolete
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 18V
Voltage - Input (Max) 36V
Voltage - Output 1 12V
Current - Output (Max) 2.1A
Voltage - Isolation 500 V
Applications ITE (Commercial)
Features Remote On/Off, OCP, OVP
Temperature Range - Operating -20°C ~ 71°C (With Derating)
Efficiency 85%
Mounting Type Through Hole
Package / Case 6-DIP Module
Size / Dimension 2.56" L x 1.97" W x 0.33" H (65.0mm x 50.0mm x 8.5mm)
Standard Package 1 pcs
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.9580
California Prop 65 Warning Information
Win Source Part Number 940042-ZUS252412
Ultra Librarian 3D Model Ultra Librarian ZUS252412 CAD Model

Description

The ZUS252412 is a power supply module from Cosel USA, Inc. It is part of the ZUS series, which is a 25W isolated module.

  • Series: ZUS
  • Power: 25W
  • Application: Board Mount
  • Category: Power Supplies
  • Features: Remote On/Off, Overcurrent Protection (OCP), Overvoltage Protection (OVP)
  • Package Size: 2.56" L x 1.97" W x 0.33" H (65.0mm x 50.0mm x 8.5mm)
  • Voltage Isolation: 500V
  • Output Current: 2.1A
  • Input Voltage: 18V to 36V
  • Output Voltage: 12V
  • Efficiency: 85%
  • Mounting: Through-Hole
  • Package: 6-DIP module
  • Operating Temperature: -20°C to 71°C (with derating)
  • Status: Obsolete
