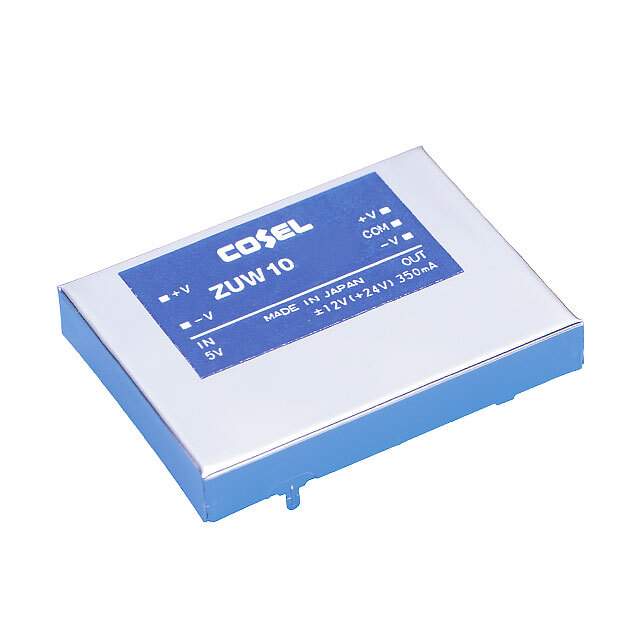

Same model may have multiple batches, images only for reference.

ZUW101212

Name: ZUW101212
Brand: Cosel USA, Inc.
SKU: 800425
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	ZUW101212
Manufacturer	Cosel USA, Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-12V / Module DC-DC 12VIN 2-OUT 12V/-12V 0.45A 10.8W 5-Pin
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Power Supplies - Board Mount
Manufacturer	Cosel USA, Inc.
Series	ZUW
Type	Isolated Module
Number of Outputs	2
Input Voltage MIN	9V
Voltage Input MAX	18V
Voltage - Output 1	12V
Voltage - Output 2	-12V
Current - Output (Maximum)	450mA, 450mA
Voltage - Isolation	500V
Applications	ITE (Commercial)
Features	OCP
Operating Temperature Range	-20°C ~ 71°C (With Derating)
Efficiency	81%
Mounting Style	Through Hole
Package	5-DIP Module
Dimension	1.77" L x 1.38" W x 0.28" H (45.0mm x 35.0mm x 7.0mm)
Win Source Part Number	800425-ZUW101212
Popularity	Medium
Supply and Demand Status	Limited
Family Name	ZUW101212
Introduction Date	August 22, 2005
Country of Origin	Japan
Estimated EOL Date	2027
Ultra Librarian 3D Model	Ultra Librarian ZUW101212 CAD Model

Alternative Products

Description

The Cosel USA, Inc. 800425-ZUW101212 is a 5-DIP module isolated module type power supply that belongs to the ZUW series.

Series: ZUW
Applications: ITE (Commercial)
Popularity: Medium
Operating Temperature Range: -20°C to 71°C (with derating)
Features: OCP
Input Voltage Range: 9V to 18V
Efficiency: 81%
Output 1 Voltage: 12V
Output 2 Voltage: -12V
