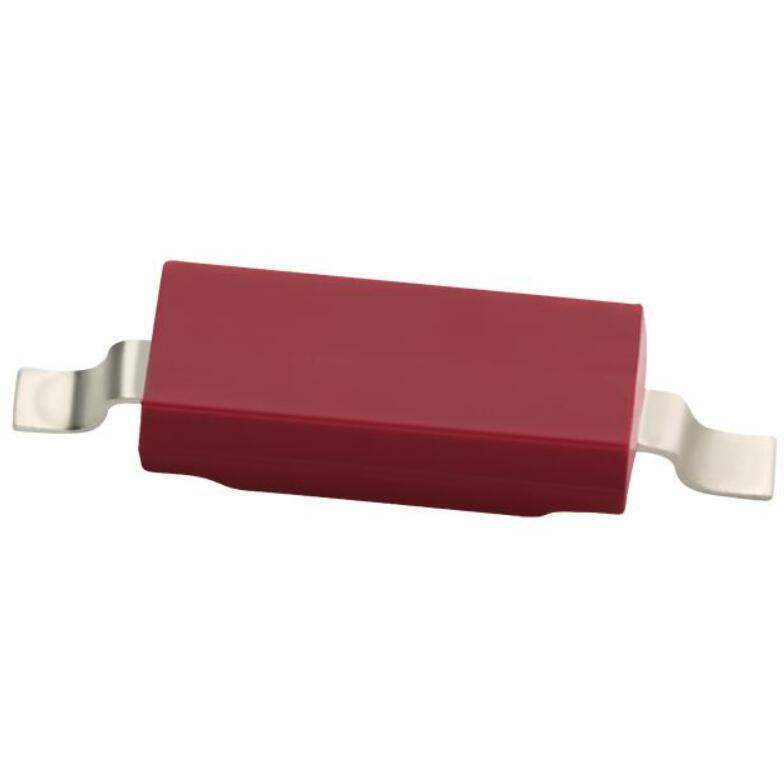

CT05-1535-G1

Part No CT05-1535-G1
Manufacturer Coto Technology
Catalog Magnetic, Reed Switches
Description SWITCH REED SPST-NO 250MA 100V
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1203797-CT05-1535-G1
Win Source Part Number Cross
Manufacturer Coto Technology
Category Switches Magnetic, Reed Switches
Series CT05
Product Status Active
Type Molded Body Reed
Circuit SPST-NO
Operate Range 15 ~ 35AT
Current - Switching 250mA (AC), 350mA (DC)
Voltage - Switching AC 100 V
Voltage - Switching DC 140 V
Ultra Librarian 3D Model Ultra Librarian CT05-1535-G1 CAD Model

Description

The CT05 is an overmolded dry reed switch. It is single-pole, single throw (SPST) type, having normally open ruthenium contacts. The sensor is a double-ended type and may be actuated with an electromagnet, a permanent magnet or a combination of both. The device is designed for SMD mounting and is available in Gull Wing or J-bend lead configurations.
