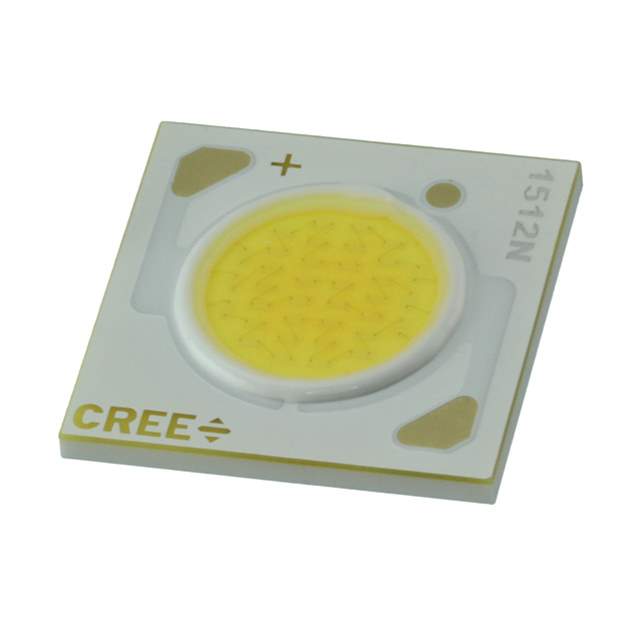

CXA1512-0000-000F00M430G Real Image
Same model may have multiple batches, images only for reference.

CXA1512-0000-000F00M430G

Part No CXA1512-0000-000F00M430G
Manufacturer Cree Inc.
Catalog LED Lighting - COBs, Engines, Modules
Description LED COB CXA1512 3000K WHITE SMD / LED Modules Uni-Color White 2-Pin Tray
Datasheet
CXA1512-0000-000F00M430G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Cree Inc.
Series XLamp CXA1512
Packaging Tray
Type Chip On Board (COB)
Color White, Warm
CCT (K) 3000K 3-Step MacAdam Ellipse
Configuration Square
Flux @ Current/Temperature - Test 1538 lm (1485 lm ~ 1590 lm)
Current - Test 700mA
Temperature - Test 85°C
Voltage - Forward (Vf) (Typ) 18V
Lumens/Watt @ Current - Test 122 lm/W
Current - Max 1.2A
CRI (Color Rendering Index) 80
Viewing Angle 115°
Dimension 15.85mm L x 15.85mm W
Height 1.70mm
Light Emitting Surface (LES) 8.90mm Diameter
Lens Type Flat
Win Source Part Number 771962-CXA1512-0000-000F00M430G
Popularity Medium
Supply and Demand Status Limited
Family Name CXA1512-0000-000F00M430G
ECCN EAR99
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian CXA1512-0000-000F00M430G CAD Model

Description

The Cree Inc. CXA1512-0000-000F00M430G is a white and warm chip-on-board LED designed for use in various lighting applications.

  • Maximum Current: 1.2A
  • Forward Voltage: 18V
  • Viewing Angle: 115 degrees
  • CCT: 3000K 3-Step MacAdam Ellipse
  • Luminous Flux: 1538 lm (1485 lm ~ 1590 lm) @ 85°C and 700mA
  • CRI: 80
  • Lumens/watt: 122 lm/W
  • Configuration: Square
  • Category: Optoelectronics
