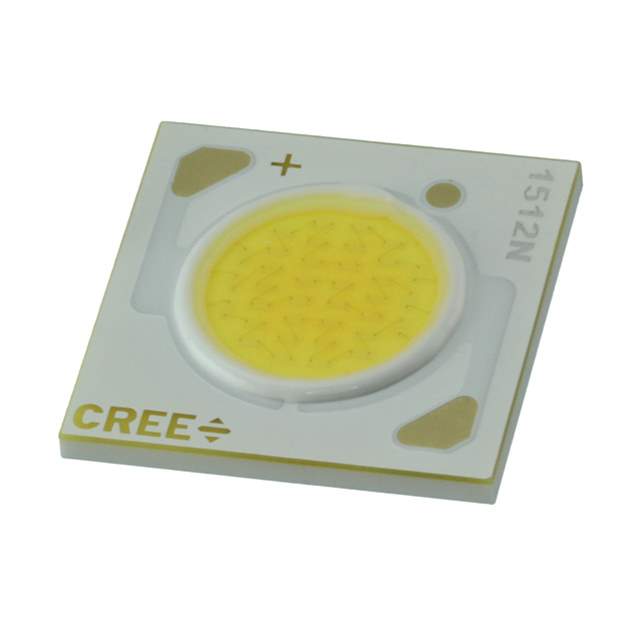

CXA1512-0000-000N00K427G Real Image
Same model may have multiple batches, images only for reference.

CXA1512-0000-000N00K427G

Part No CXA1512-0000-000N00K427G
Manufacturer Cree Inc.
Catalog LED Lighting - COBs, Engines, Modules
Description LED COB CXA1512 2700K WHITE SMD / Chip On Board LED Lighting Module
Datasheet
CXA1512-0000-000N00K427G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Cree Inc.
Series XLamp CXA1512
Packaging Tray
Type Chip On Board (COB)
Color White, Warm
CCT (K) 2700K 3-Step MacAdam Ellipse
Configuration Square
Flux @ Current/Temperature - Test 1335 lm (1290 lm ~ 1380 lm)
Current - Test 350mA
Temperature - Test 85°C
Voltage - Forward (Vf) (Typ) 36V
Lumens/Watt @ Current - Test 106 lm/W
Current - Max 600mA
CRI (Color Rendering Index) 80
Viewing Angle 115°
Dimension 15.85mm L x 15.85mm W
Height 1.70mm
Light Emitting Surface (LES) 8.90mm Diameter
Lens Type Flat
Win Source Part Number 771963-CXA1512-0000-000N00K427G
Popularity Medium
Supply and Demand Status Balance
Family Name CXA1512-0000-000N00K427G
ECCN EAR99
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian CXA1512-0000-000N00K427G CAD Model

Description

The CXA1512-0000-000N00K427G by Cree Inc. is a high-quality chip on board (COB) LED that is ideal for use in a variety of lighting applications.

  • Colors: White and Warm
  • Maximum Current: 600mA
  • Configuration: Square
  • Viewing Angle: 115°
  • Voltage Forward (Vf): 36V
  • Current Test: 350mA
  • Height: 1.70mm
  • Lens Type: Flat
  • ECCN: EAR99
  • Estimated EOL Date: 2026
  • CCT: 2700K 3-step MacAdam ellipse
  • Lumens/Watt: 106 lm/W @ current test
  • CRI: 80
  • Flux @ Current/Temperature Test: 1335 lm (1290 lm ~ 1380 lm) @ 85°C
  • LES Diameter: 8.90mm
  • Dimension: 15.85mm L x 15.85mm W
