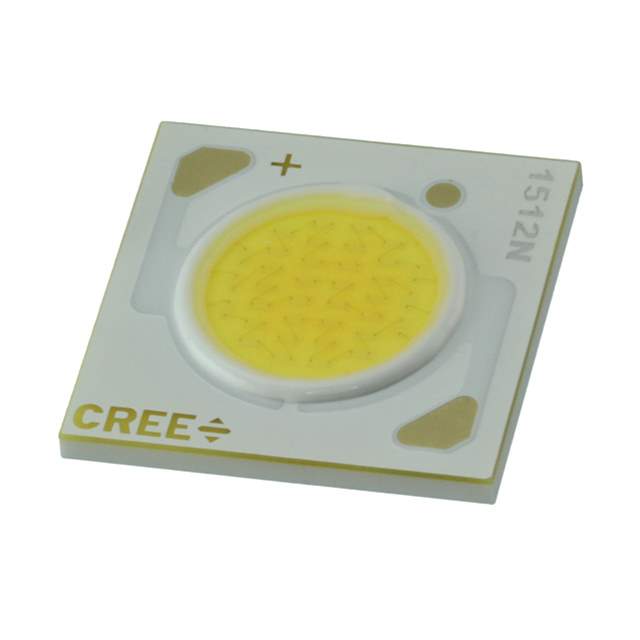

CXA1512-0000-000N00M230G Real Image
Same model may have multiple batches, images only for reference.

CXA1512-0000-000N00M230G

Part No CXA1512-0000-000N00M230G
Manufacturer Cree Inc.
Catalog LED Lighting - COBs, Engines, Modules
Description LED Modules Uni-Color White 2-Pin Tray / LED COB CXA1512 3000K WHITE SMD
Datasheet
CXA1512-0000-000N00M230G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Cree Inc.
Packaging Tray
Status Active
Type Chip On Board (COB)
Color White, Warm
CCT (K) 3000K 3-Step MacAdam Ellipse
Configuration Square
Flux @ Current/Temperature - Test 1433 lm (1380 lm to 1485 lm)
Current - Test 350mA
Temperature - Test 85°C
Forward Voltage 36V
Lumens/Watt @ Current - Test 114 lm/W
Current - Max 600mA
CRI (Color Rendering Index) 80
Viewing Angle 115°
Height 1.70mm
Light Emitting Surface (LES) 8.90mm Diameter
Lens Type Flat
Win Source Part Number 1030901-CXA1512-0000-000N00M230G
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name CXA1512-0000-000N00M230G
ECCN EAR99
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian CXA1512-0000-000N00M230G CAD Model

Description

The Cree CXA1512-0000-000N00M230G is a chip-on-board (COB) LED that comes in a square configuration.

  • Configuration: Square
  • Viewing Angle: 115 degrees
  • Forward Voltage: 36V
  • Height: 1.70mm
  • Light Emitting Surface (LES) Diameter: 8.90mm
  • Color: Warm White
  • CCT: 3000K
  • Current-Max: 600mA
  • Current-Test: 350mA
  • Lumens/Watt (Current-Test): 114 lm/W
  • CRI: 80
  • Flux (Current/Temperature-Test): 1433 lm
  • Temperature-Test: 85 degrees Celsius
  • Halogen Free: Compliant
  • Popularity: High
  • Estimated EOL Date: 2028
