Same model may have multiple batches, images only for reference.

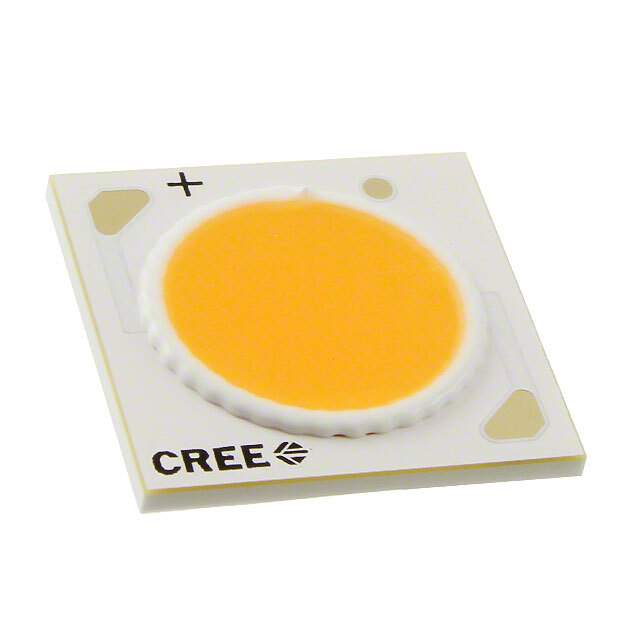

CXA1820-0000-000N0HQ440G Real Image
Same model may have multiple batches, images only for reference.

CXA1820-0000-000N0HQ440G

Part No CXA1820-0000-000N0HQ440G
Manufacturer Cree Inc.
Catalog LED Lighting - COBs, Engines, Modules
Description LED COB CXA1820 4000K WHITE SMD
Datasheet
CXA1820-0000-000N0HQ440G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Cree Inc.
Series XLamp CXA1820
Packaging Tray
Type Chip On Board (COB)
Color White, Neutral
CCT (K) 4000K 3-Step MacAdam Ellipse
Configuration Square
Flux @ Current/Temperature - Test 2340 lm (2260 lm ~ 2420 lm)
Current - Test 550mA
Temperature - Test 85°C
Voltage - Forward (Vf) (Typ) 36V
Lumens/Watt @ Current - Test 118 lm/W
Current - Max 1.05A
CRI (Color Rendering Index) 80
Viewing Angle 115°
Dimension 17.85mm L x 17.85mm W
Height 1.70mm
Light Emitting Surface (LES) 12.00mm Diameter
Lens Type Flat
Win Source Part Number 771971-CXA1820-0000-000N0HQ440G
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CXA1820-0000-000N0HQ440G CAD Model

Description

The Cree XLamp CXA1820 is a chip on board (COB) LED with a square configuration and a maximum forward current of 1.05A.

  • Forward Voltage: 36V
  • Color Temperature: 4000K
  • Viewing Angle: 115 degrees
  • Lens Type: Flat
  • CRI: 80
  • Flux: 2340 lm @ 85°C and 550mA
  • LES Diameter: 12.00mm
  • Category: Optoelectronics
  • Packaging: Tray
  • Dimension: 17.85mm L x 17.85mm W
