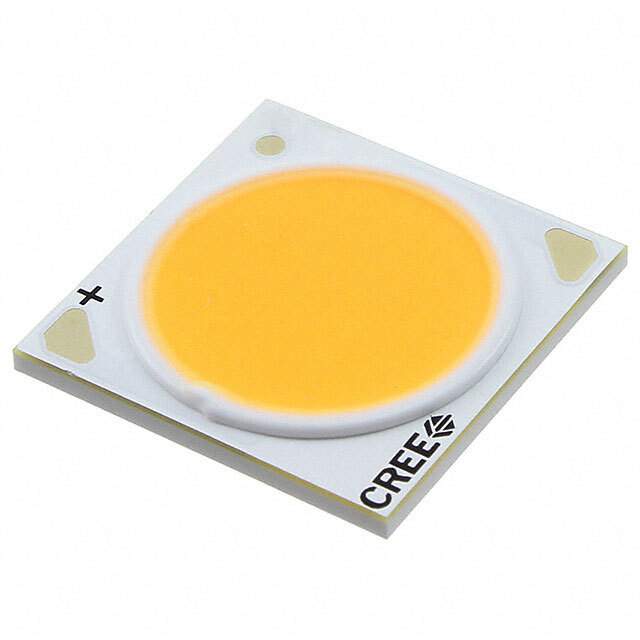

CXA1830-0000-000N0HT450G Real Image
Same model may have multiple batches, images only for reference.

CXA1830-0000-000N0HT450G

Part No CXA1830-0000-000N0HT450G
Manufacturer Cree Inc.
Catalog LED Lighting - COBs, Engines, Modules
Description LED COB CXA1830 5000K WHITE SMD / Chip On Board LED Lighting Module
Datasheet
CXA1830-0000-000N0HT450G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Cree Inc.
Series XLamp CXA1830
Packaging Tray
Type Chip On Board (COB)
Color White, Cool
CCT (K) 5000K 3-Step MacAdam Ellipse
Configuration Square
Flux @ Current/Temperature - Test 3560 lm (3440 lm ~ 3680 lm)
Current - Test 800mA
Temperature - Test 85°C
Voltage - Forward (Vf) (Typ) 36V
Lumens/Watt @ Current - Test 124 lm/W
Current - Max 1.4A
CRI (Color Rendering Index) 80
Viewing Angle 115°
Dimension 17.85mm L x 17.85mm W
Height 1.70mm
Light Emitting Surface (LES) 14.00mm Diameter
Lens Type Flat
Win Source Part Number 771976-CXA1830-0000-000N0HT450G
Popularity Medium
Supply and Demand Status Balance
Family Name CXA1830-0000-000N0HT450G
Introduction Date November 03, 2017
ECCN EAR99
Ultra Librarian 3D Model Ultra Librarian CXA1830-0000-000N0HT450G CAD Model

Description

The Cree XLamp CXA1830 is a chip on board (COB) type electronic component that is perfect for lighting applications.

  • Maximum Current: 1.4A
  • Forward Voltage: 36V
  • Color: Cool White
  • CRI: 80
  • Color Temperature: 5000K
  • Viewing Angle: 115 degrees
  • LES Diameter: 14.00mm
  • Flux: 3560 lm @ 800mA/85 degrees Celsius
  • Lumens/watt: 124 lm/W @ 800mA/85 degrees Celsius
  • Category: Optoelectronic
  • Popularity: Medium
  • Supply and Demand Status: Balanced
