Same model may have multiple batches, images only for reference.

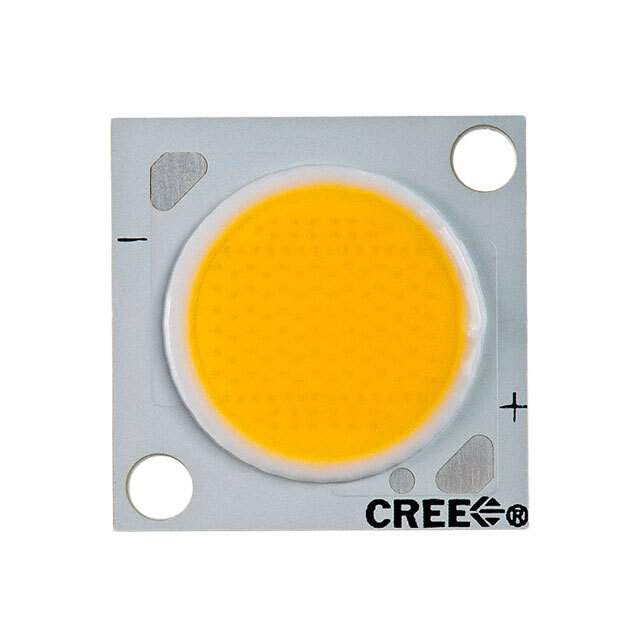

CXA2011-0000-000P00H035F Real Image
Same model may have multiple batches, images only for reference.

CXA2011-0000-000P00H035F

Part No CXA2011-0000-000P00H035F
Manufacturer Cree Inc.
Catalog LED Lighting - COBs, Engines, Modules
Description Cree XLamp CXA2011 LED
Datasheet
CXA2011-0000-000P00H035F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Cree Inc.
Series XLamp CXA2011
Packaging Tube
Part Status Obsolete(EOL)
Type Chip On Board (COB)
Color White, Warm
CCT (K) 3500K 4-Step MacAdam Ellipse
Configuration Square
Flux @ Current/Temperature - Test 970 lm (900 lm ~ 1040 lm)
Current - Test 270mA
Temperature - Test 85°C
Voltage - Forward (Vf) (Typ) 40V
Lumens/Watt @ Current - Test 90 lm/W
Current - Max 1A
CRI (Color Rendering Index) 77
Viewing Angle 120°
Size 22.00mm L x 22.00mm W
Height 2.28mm
Lens Type Flat
Win Source Part Number 1163792-CXA2011-0000-000P00H035F
Manufacturer Homepage www.cree.com/
Popularity Medium
Supply and Demand Status Balance
Family Name CXA2011-0000-000P00H035F
Introduction Date April 12, 2011
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian CXA2011-0000-000P00H035F CAD Model

Description

The Cree Inc. CXA2011-0000-000P00H035F is a white and warm chip-on-board LED designed for use in various lighting applications.

  • Maximum Current: 1A
  • Forward Voltage: 40V
  • Viewing Angle: 120 degrees
  • CCT: 3500K 4-Step MacAdam Ellipse
  • Luminous Flux: 970 lm (900 lm to 1040 lm) @ 85°C and 270mA
  • CRI: 77
  • Lumens/Watt: 90 lm/W @ current-test
  • Configuration: square configuration
  • Status: obsolete (EOL) now.
