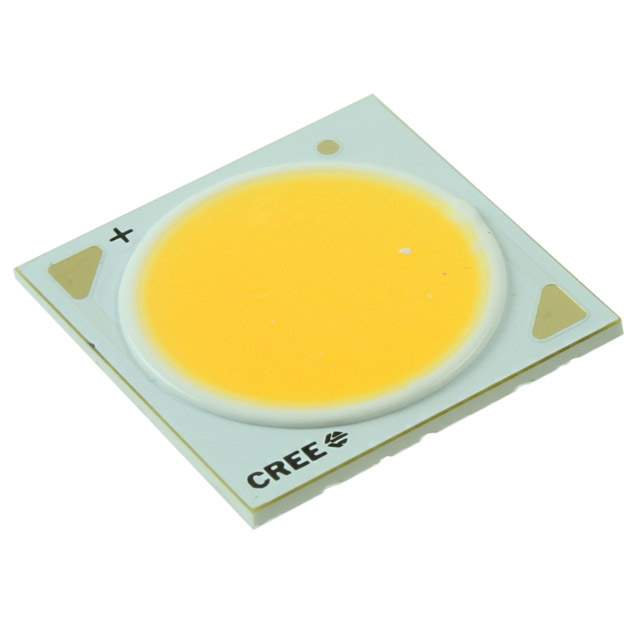

CXA2530-0000-000N00T435G Real Image
Same model may have multiple batches, images only for reference.

CXA2530-0000-000N00T435G

Part No CXA2530-0000-000N00T435G
Manufacturer Cree Inc.
Catalog LED Lighting - COBs, Engines, Modules
Description LED COB CXA2530 2700K WHITE SMD / Chip On Board LED Lighting Module
Datasheet
CXA2530-0000-000N00T435G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Cree Inc.
Series XLamp CXA2530
Packaging Tray
Type Chip On Board (COB)
Color White, Warm
CCT (K) 3500K 3-Step MacAdam Ellipse
Configuration Square
Flux @ Current/Temperature - Test 3560 lm (3440 lm ~ 3680 lm)
Current - Test 800mA
Temperature - Test 85°C
Voltage - Forward (Vf) (Typ) 36V
Lumens/Watt @ Current - Test 124 lm/W
Current - Max 1.6A
CRI (Color Rendering Index) 80
Viewing Angle 115°
Dimension 23.85mm L x 23.85mm W
Height 1.70mm
Light Emitting Surface (LES) 19.00mm Diameter
Lens Type Flat
Win Source Part Number 771979-CXA2530-0000-000N00T435G
Popularity Medium
Supply and Demand Status Limited
Family Name CXA2530-0000-000N00T435G
ECCN EAR99
Ultra Librarian 3D Model Ultra Librarian CXA2530-0000-000N00T435G CAD Model

Description

The Cree Inc. CXA2530-0000-000N00T435G is a white and warm chip-on-board LED designed for use in various lighting applications.

  • Maximum Current: 1.6A
  • Forward Voltage: 36V
  • Viewing Angle: 115 degrees
  • CCT: 3500K 3-Step MacAdam Ellipse
  • Luminous Flux: 3560 lm (3440 lm ~ 3680 lm) @ 85°C and 800mA
  • CRI: 80
  • Lumens/watt: 124 lm/W
  • Configuration: Square
  • Category: Optoelectronics
