Same model may have multiple batches, images only for reference.

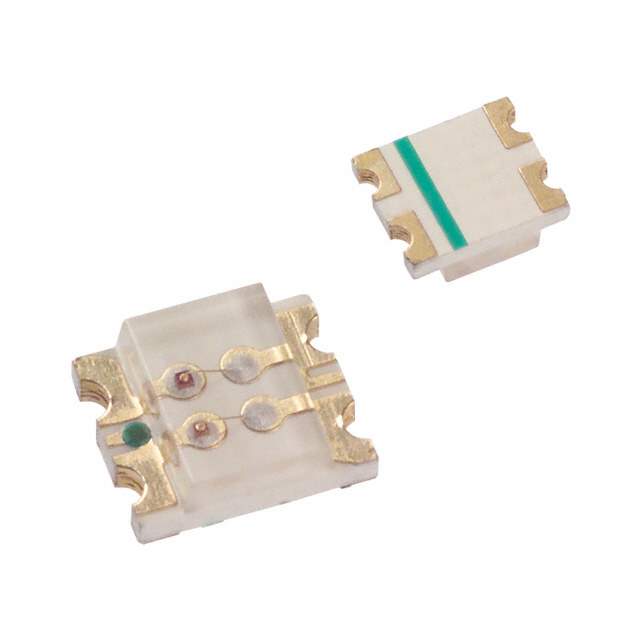

SML-LX1210YGC-TR Real Image
Same model may have multiple batches, images only for reference.

SML-LX1210YGC-TR

Part No SML-LX1210YGC-TR
Manufacturer Lumex Opto/Components Inc.
Catalog LED Indication - Discrete
Description LED GREEN/YELLOW CLEAR 1210 SMD / Green, Yellow LED Indication - Discrete 2.2V Green, 2.1V Yellow 1210 (3225 Metric)
Datasheet
SML-LX1210YGC-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Lumex Opto/Components Inc.
Package Tape & Reel
Color Green, Yellow
Configuration Independent
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 10mcd Green, 10mcd Yellow
Lens Style Rectangle with Flat Top
Lens Size 2.00mm x 2.70mm
Voltage - Forward (Vf) (Typ) 2.2V Green, 2.1V Yellow
Current - Test 20mA Green, 20mA Yellow
Viewing Angle 140°
Mounting SMD (SMT)
Wavelength - Peak 565nm Green, 585nm Yellow
Package / Case 1210 (3225 Metric)
Supplier Device Package 1210
Dimension 3.20mm L x 2.70mm W
Height (Max) 1.10mm
Base Product Number SML-LX1210
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names 67-1363-2-NDR,SMLLX1210YGCTR,67-1363-1,67-1363-6,LU603775TR,67-1363-2,67-1363-1-NDR,LU603775CT
Standard Package 3,000
Win Source Part Number 1094500-SML-LX1210YGC-TR
Ultra Librarian 3D Model Ultra Librarian SML-LX1210YGC-TR CAD Model

Description

The SML-LX1210YGC-TR is an optoelectronic component designed for LED indication applications manufactured by Lumex Opto/Components Inc.

  • Configuration: Green and Yellow Independent
  • Viewing Angle: 140 degrees
  • Lens Style: Rectangle with a Flat Top
  • Lens Size: 2.00mm x 2.70mm
  • Package: Tape and Reel
  • Standard Package: 3,000 pieces
  • Millicandela Rating (Green): 10mcd
  • Millicandela Rating (Yellow): 10mcd
  • Voltage-Forward (Green): 2.2V
  • Voltage-Forward (Yellow): 2.1V
  • Current Test: 20mA (both colors)
  • Wavelength Peak (Green): 565nm
  • Wavelength Peak (Yellow): 585nm
  • Height: 1.10mm
  • Package/Case: 1210 (3225 Metric)
  • Supplier Device Package: 1210
  • Lens Color: Clear, Colorless
