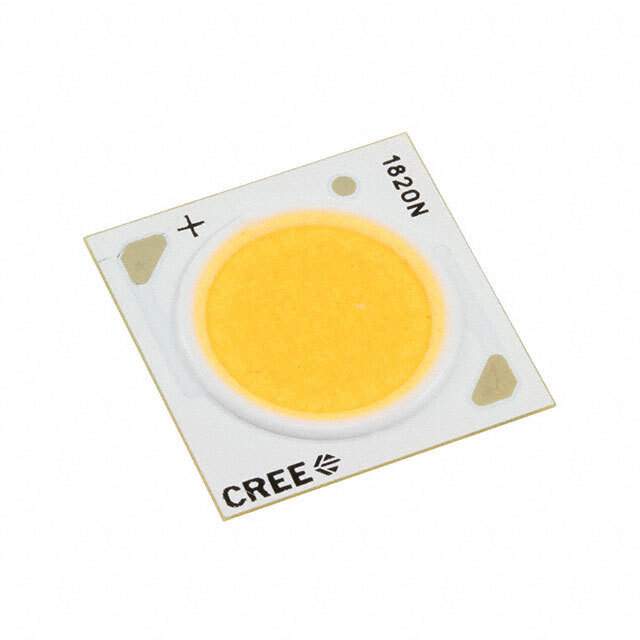

CXB1820-0000-000N0HR440G Real Image
Same model may have multiple batches, images only for reference.

CXB1820-0000-000N0HR440G

Part No CXB1820-0000-000N0HR440G
Manufacturer Cree Inc.
Catalog LED Lighting - COBs, Engines, Modules
Description XLamp LED
Datasheet
CXB1820-0000-000N0HR440G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Cree Inc.
Series Xlamp CXB1820
Packaging Tray
Type Chip On Board (COB)
Color White, Neutral
CCT (K) 4000K 3-Step MacAdam Ellipse
Configuration Square
Flux @ Current/Temperature - Test 2690 lm (2600 lm ~ 2780 lm)
Current - Test 550mA
Temperature - Test 85°C
Voltage - Forward (Vf) (Typ) 36V
Lumens/Watt @ Current - Test 136 lm/W
Current - Max 1.05A
CRI (Color Rendering Index) 80
Viewing Angle 115°
Size 17.85mm L x 17.85mm W
Height 1.70mm
Light Emitting Surface (LES) 12.00mm Diameter
Lens Type Flat
Win Source Part Number 1163822-CXB1820-0000-000N0HR440G
Manufacturer Homepage www.cree.com/
Popularity Medium
Supply and Demand Status Balance
Family Name CXB1820-0000-000N0HR440G
Introduction Date February 06, 2015
ECCN EAR99
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian CXB1820-0000-000N0HR440G CAD Model

Description

The Cree Inc. XLamp CXB1820 is a chip on board (COB) LED with a square configuration and a white, neutral color.

  • Configuration: Square
  • Color: White, Neutral
  • Current (Max): 1.05A
  • Forward Voltage (Typical): 36V
  • Viewing Angle: 115 degrees
  • Lens Type: Flat
  • Color Temperature: 4000K (3-step MacAdam ellipse)
  • CRI: 80
  • Luminous Efficacy: 136 lm/W @ 550mA
  • Luminous Flux: 2690 lm @ 550mA
  • Light Emitting Surface (LES): 12.00mm diameter
  • Height: 1.70mm
  • Series: CXB1820
  • Packaging: Tray
  • Estimated EOL: 2026
