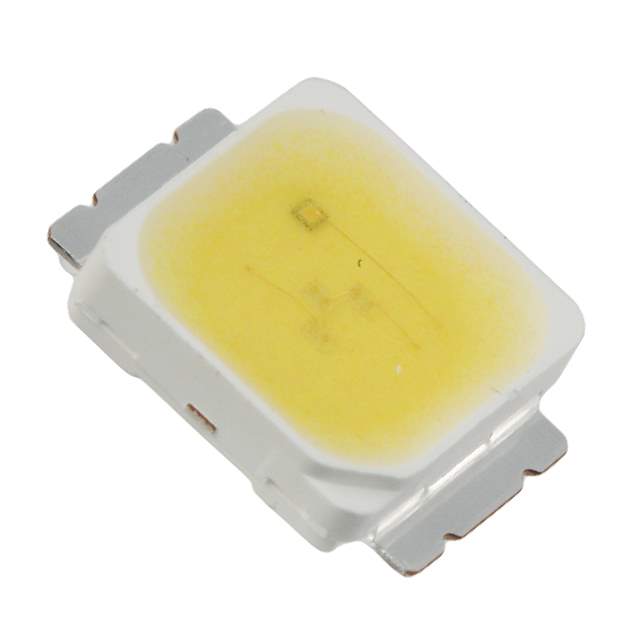

MX3SWT-A1-0000-000D51 Real Image
Same model may have multiple batches, images only for reference.

MX3SWT-A1-0000-000D51

Part No MX3SWT-A1-0000-000D51
Manufacturer Cree Inc.
Catalog LED Lighting - White
Description LED XLAMP COOL WHITE 6500K 2SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Cree Inc.
Packaging Reel - TR
Status Active
Color White, Cool
CCT (K) 6500K
Flux @ 25°C, Current - Test 111 lm (107 lm to 114 lm)
Current - Test 115mA
Forward Voltage 10.7V
Lumens/Watt @ Current - Test 90 lm/W
CRI (Color Rendering Index) 75 (Typ)
Current - Max 175mA
Viewing Angle 120°
Mounting SMD (SMT)
Case / Package SMD
Height - Seated (Max) 0.058" (1.48mm)
Thermal Resistance of Package 11°C/W
Win Source Part Number 1081343-MX3SWT-A1-0000-000D51
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 1,400
Ultra Librarian 3D Model Ultra Librarian MX3SWT-A1-0000-000D51 CAD Model

Description

The Cree Inc. 1081343-MX3SWT-A1-0000-000D51 is a high-quality white and cool color LED.

  • Height: 0.058 inches
  • Maximum Current: 175mA
  • Forward Voltage: 10.7V
  • Viewing Angle: 120 degrees
  • CCT: 6500K
  • Flux @ 25°C, Current - Test: 111 lm (107 lm to 114 lm)
  • Lumens/Watt @ Current - Test: 90 lm/W
  • CRI (Color Rendering Index): 75 (Typ)
  • Thermal Resistance: 11°C/W
  • Supply and Demand Status: Sufficient
  • Quantity per Package: 1,400
