Same model may have multiple batches, images only for reference.

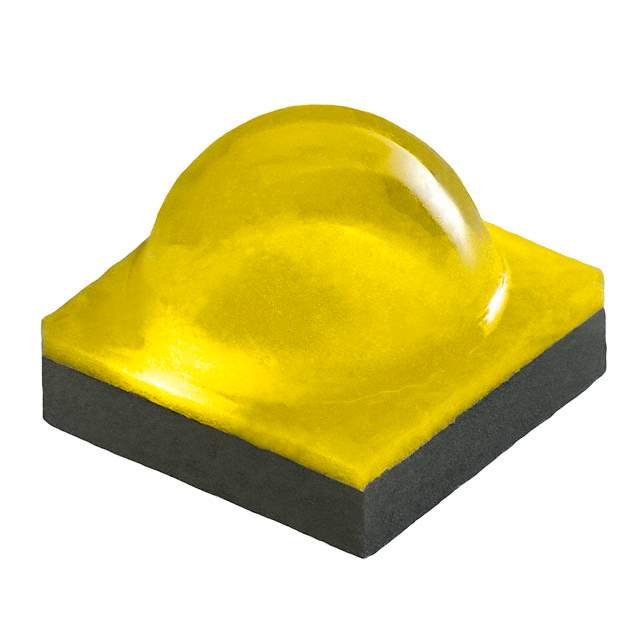

XBDAWT-00-0000-00000LBE7 Real Image
Same model may have multiple batches, images only for reference.

XBDAWT-00-0000-00000LBE7

Part No XBDAWT-00-0000-00000LBE7
Manufacturer Cree Inc.
Catalog LED Lighting - White
Description Cree® XLamp® XB-D LEDs | LED XLAMP WARM WHITE 3000K 2SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Cree Inc.
Packaging Reel
Color White, Warm
CCT (K) 3000K
Flux at 85°C, Current - Test 97lm (94lm ~ 100lm)
Current - Test 350mA
Voltage - Forward (Vf) 2.9V
Lumens/Watt at Current - Test 96 lm/W
CRI (Color Rendering Index) 80
Current - Max 1A
Viewing Angle 115°
Mounting Style SMD
Manufacturer Package 1010 (2525 Metric)
Supplier Device Package SMD
Parts Dimension 0.096" L x 0.096" W (2.45mm x 2.45mm)
Height - Seated (Maximum) 0.078" (1.97mm)
Thermal Resistance of Package 6.5°C/W
Family Part Number XBD
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 750708-XBDAWT-00-0000-00000LBE7
Family Name XBDAWT-00-0000-00000LBE7
Introduction Date January 05, 2012
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date 2023
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian XBDAWT-00-0000-00000LBE7 CAD Model

Description

The XBDAWT-00-0000-00000LBE7 is a high-performance white and warm color LED manufactured by Cree Inc..

  • Type: surface-mount device (SMD)
  • Packaging: reel
  • Maximum Current: 1A
  • Test Current: 350mA
  • Viewing Angle: 115 degrees
  • CCT: 3000K
  • Thermal Resistance: 6.5 degrees Celsius per watt
  • CRI: 80
  • Seated Height: 1.97mm
  • Application: optoelectronics
