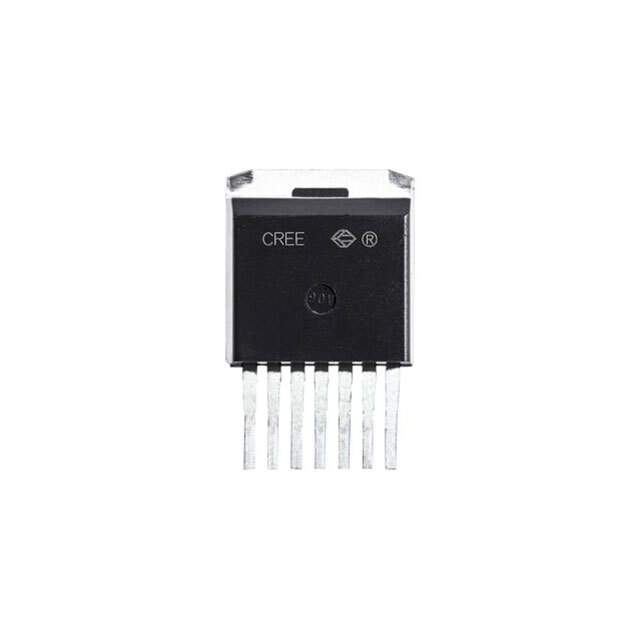

Same model may have multiple batches, images only for reference.

C3M0060065J

Name: C3M0060065J
Brand: Cree/Wolfspeed
SKU: 1324553
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	C3M0060065J
Manufacturer	Cree/Wolfspeed
Catalog	Transistors - FETs, MOSFETs - RF
Description	SICFET N-CH 650V 36A TO263-7 / N-Channel 650 V 36A (Tc) 136W (Tc) Surface Mount TO-263-7
Datasheet	C3M0060065J Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Manufacturer	Wolfspeed, Inc.
Packaging	Tube
FET Type	N-Channel
Technology	SiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss)	650 V
Current - Continuous Drain (Id) @ 25°C	36A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	15V
Rds On (Max) @ Id, Vgs	79mOhm @ 13.2A, 15V
Vgs(th) (Max) @ Id	3.6V @ 5mA
Gate Charge (Qg) (Max) @ Vgs	46 nC @ 15 V
Vgs (Max)	+15V, -4V
Input Capacitance (Ciss) (Max) @ Vds	1020 pF @ 600 V
Power Dissipation (Max)	136W (Tc)
Temperature Range - Operating	-40°C ~ 175°C (TJ)
Mounting	Surface Mount
Supplier Device Package	TO-263-7
Case / Package	TO-263-8, D²Pak (7 Leads + Tab), TO-263CA
Base Product Number	C3M0060065
RoHS Status	RoHS Compliant
MSL Level	3 (168 Hours)
ECCN	EAR99
HTSUS	8541.29.0095
Other Part Number	1697-C3M0060065J,-3312-C3M0060065J
Standard Package	50
Win Source Part Number	1324553-C3M0060065J
Ultra Librarian 3D Model	Ultra Librarian C3M0060065J CAD Model

Alternative Products

Description

The C3M0060065J is an N-channel SiCFET (silicon carbide field-effect transistor) designed for high power applications.

Drain-to-Source Voltage: 650 V
Continuous Drain Current Rating: 36 A @ 25°C
Maximum Rds On: 79mOhm @ 13.2A and 15V
Gate Charge: 46 nC @ 15 V
Input Capacitance: 1020 pF @ 600 V
Package: TO-263-7
Operating Temperature: -40°C to 175°C
