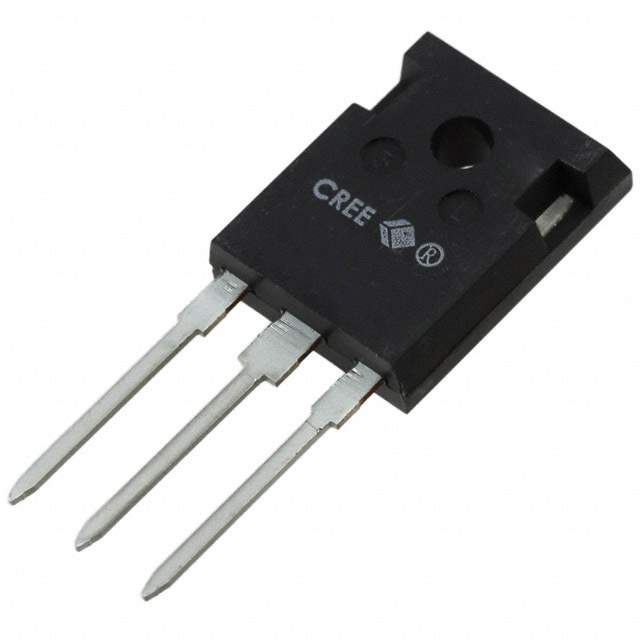

Same model may have multiple batches, images only for reference.

C3M0120090D

Name: C3M0120090D
Brand: Cree/Wolfspeed
SKU: 1325240
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	C3M0120090D
Manufacturer	Cree/Wolfspeed
Catalog	Transistors - FETs, MOSFETs - RF
Description	SICFET N-CH 900V 23A TO247-3 / N-Channel 900 V 23A (Tc) 97W (Tc) Through Hole TO-247-3
Datasheet	C3M0120090D Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Manufacturer	Wolfspeed, Inc.
Packaging	Tube
FET Type	N-Channel
Technology	SiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss)	900 V
Current - Continuous Drain (Id) @ 25°C	23A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	15V
Rds On (Max) @ Id, Vgs	155mOhm @ 15A, 15V
Vgs(th) (Max) @ Id	3.5V @ 3mA
Gate Charge (Qg) (Max) @ Vgs	17.3 nC @ 15 V
Vgs (Max)	+18V, -8V
Input Capacitance (Ciss) (Max) @ Vds	414 pF @ 600 V
Power Dissipation (Max)	97W (Tc)
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting	Through Hole
Supplier Device Package	TO-247-3
Case / Package	TO-247-3
Base Product Number	C3M0120090
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.29.0095
Other Part Number	1697-C3M0120090D,C3M0120090D-ND,-3312-C3M0120090D
Standard Package	30
Win Source Part Number	1325240-C3M0120090D
Ultra Librarian 3D Model	Ultra Librarian C3M0120090D CAD Model

Alternative Products

Description

The C3M0120090D is a N-Channel SiCFET (Silicon Carbide) Transistor manufactured by Wolfspeed, Inc.

Drain to Source Voltage: 900 V
Continuous Drain Current: 23A (Tc)
Rds On: 155mOhm @ 15A, 15V
Gate Charge (Qg) (Max) @ Vgs: 17.3 nC @ 15 V
Input Capacitance (Ciss) (Max) @ Vds: 414 pF @ 600 V
Operating Temperature Range: -55°C to 150°C (TJ)
Package: TO-247-3 case
RoHS Compliant: Yes
Ideal for Use: in Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single.
