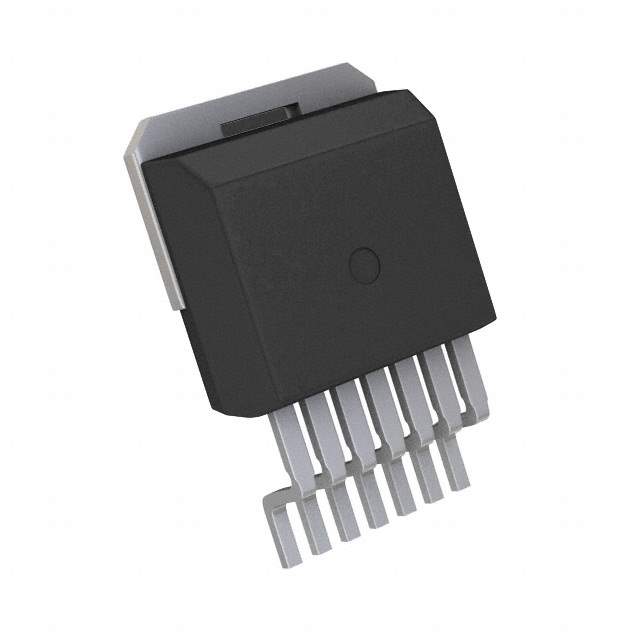

Same model may have multiple batches, images only for reference.

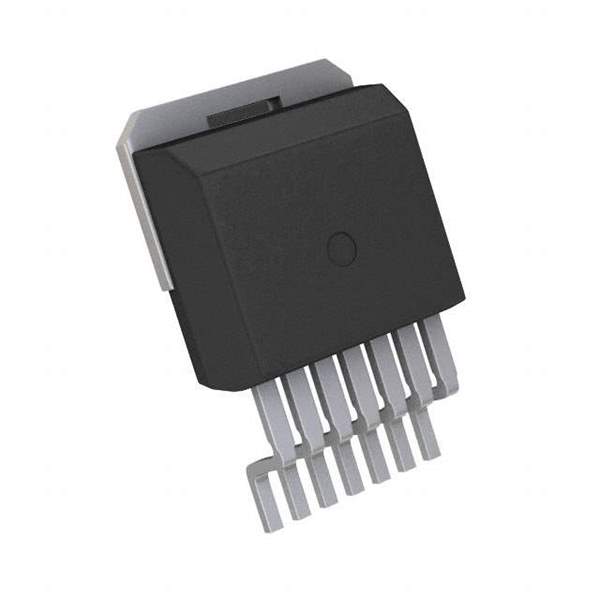

C3M0120090J Real Image
Same model may have multiple batches, images only for reference.

C3M0120090J

Part No C3M0120090J
Manufacturer Cree/Wolfspeed
Catalog Transistors - FETs, MOSFETs - RF
Description SICFET N-CH 900V 22A D2PAK-7
Datasheet
C3M0120090J Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Estimated Pruduction Lead Time 29 Weeks
Features N-Channel 900 V 22A (Tc) 83W (Tc) Surface Mount D2PAK-7
Manufacturer Cree/Wolfspeed
Series C3M™
Package Tube
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Surface Mount
Package TO-263-8, D2Pak (7 Leads + Tab), TO-263CA
Case / Package D2PAK-7
Family Name C3M0120090
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.29.0095
Other Part Number C3M0120090J-ND, 1697-C3M0120090J, -3312-C3M0120090J
Quantity per package 50
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 865610-C3M0120090J
Ultra Librarian 3D Model Ultra Librarian C3M0120090J CAD Model

Description

This electronic component is a Cree/Wolfspeed product with the Win Source Part Number 865610-C3M0120090J.

  • Type: N-Channel 900 V 22A (Tc) 83W (Tc) Surface Mount D2PAK-7
  • Package: TO-263-8, D2Pak (7 Leads + Tab), TO-263CA
  • Series: C3M™
  • Category: Discrete Semiconductor Products
  • Supply and Demand Status: Limited
  • Quantity per Package: 50
  • Estimated Production Lead Time: 29 weeks
  • MSL Level: 1 (Unlimited)
  • ECCN: EAR99
  • Other Part Numbers: C3M0120090J-ND, 1697-C3M0120090J, and -3312-C3M0120090J
