Same model may have multiple batches, images only for reference.

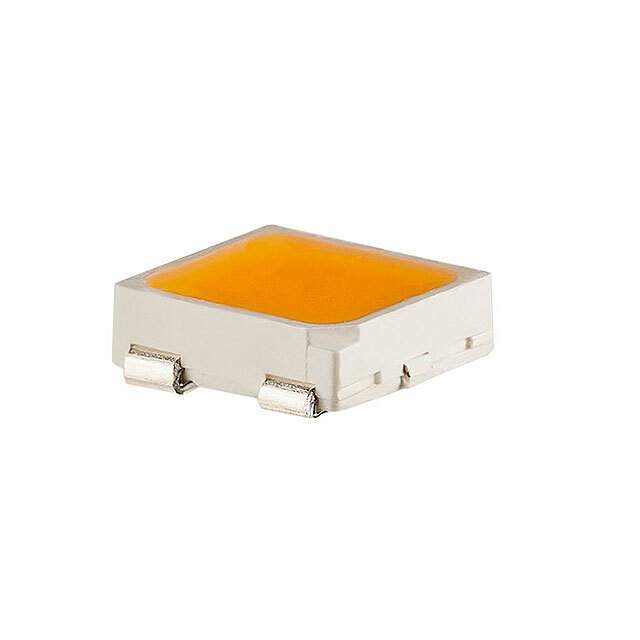

MLESWT-P1-0000-0002A6 Real Image
Same model may have multiple batches, images only for reference.

MLESWT-P1-0000-0002A6

Part No MLESWT-P1-0000-0002A6
Manufacturer CreeLED, Inc.
Catalog LED Lighting - White
Description LED XLAMP WARM WHITE 3575K 4SMD / LED Lighting series White, Warm 3575K (3250K ~ 3900K) 9.6V 50mA 120° 4-SMD, J-Lead Exposed Pad
Datasheet
MLESWT-P1-0000-0002A6 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - White
Mfr CreeLED, Inc.
Series XLamp® ML-E
Package Tape & Reel (TR)
Color White, Warm
CCT (K) 3575K (3250K ~ 3900K)
Flux @ 85°C, Current - Test 39lm
Flux @ 25°C, Current - Test 43lm (40lm ~ 46lm)
Current - Test 50mA
Voltage - Forward (Vf) (Typ) 9.6V
Lumens/Watt @ Current - Test 90 lm/W
CRI (Color Rendering Index) 85
Current - Max 167mA
Viewing Angle 120°
Mounting SMD (SMT)
Package / Case 4-SMD, J-Lead Exposed Pad
Supplier Device Package SMD
Dimension 0.138" L x 0.124" W (3.50mm x 3.15mm)
Height - Seated (Max) 0.052" (1.33mm)
Thermal Resistance of Package 11°C/W
Base Product Number MLESWT
MSL Level 2A (4 Weeks)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Standard Package 1,400
Win Source Part Number 1158846-MLESWT-P1-0000-0002A6
Ultra Librarian 3D Model Ultra Librarian MLESWT-P1-0000-0002A6 CAD Model

Description

The CreeLED, Inc. XLamp® ML-E is a white LED lighting component that is used in various applications.

  • CCT (K): 3575K (3250K ~ 3900K)
  • Flux @ 85°C, current - test: 39lm
  • Flux @ 25°C, current - test: 43lm (40lm ~ 46lm)
  • Lumens/Watt @ current - test: 90 lm/W
  • CRI (Color Rendering Index): 85
  • Thermal Resistance: 11°C/W
  • Package/Case: 4-SMD, J-Lead Exposed Pad
  • Supplier Device Package: SMD
  • Dimension: 0.138" L x 0.124" W (3.50mm x 3.15mm)
