Same model may have multiple batches, images only for reference.

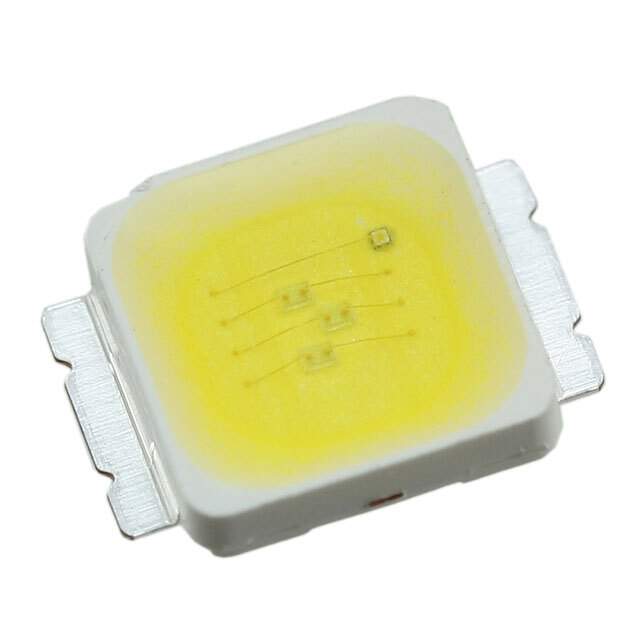

MX3AWT-A1-0000-0007AA Real Image
Same model may have multiple batches, images only for reference.

MX3AWT-A1-0000-0007AA

Part No MX3AWT-A1-0000-0007AA
Manufacturer CreeLED, Inc.
Catalog LED Lighting - White
Description LED XLAMP WARM WHITE 2700K 2SMD / LED Lighting series White, Warm 2700K 3.7V 350mA 120° 2-SMD, Gull Wing Exposed Pad
Datasheet
MX3AWT-A1-0000-0007AA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - White
Mfr CreeLED, Inc.
Series XLamp® MX-3
Package Tape & Reel (TR)
Color White, Warm
CCT (K) 2700K
Flux @ 25°C, Current - Test 71lm (67lm ~ 74lm)
Current - Test 350mA
Voltage - Forward (Vf) (Typ) 3.7V
Lumens/Watt @ Current - Test 55 lm/W
CRI (Color Rendering Index) 80 (Typ)
Current - Max 500mA
Viewing Angle 120°
Mounting SMD (SMT)
Package / Case 2-SMD, Gull Wing Exposed Pad
Supplier Device Package SMD
Dimension 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height - Seated (Max) 0.058" (1.48mm)
Thermal Resistance of Package 11°C/W
Base Product Number MX3AWT
MSL Level 2A (4 Weeks)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Standard Package 1,400
Win Source Part Number 1167202-MX3AWT-A1-0000-0007AA
Ultra Librarian 3D Model Ultra Librarian MX3AWT-A1-0000-0007AA CAD Model

Description

The XLamp MX-3 is a white LED lighting product from CreeLED, Inc. that is designed for use in various optoelectronic applications.

  • Mounting Type: SMD (Surface Mount Device)
  • Viewing Angle: 120 degrees
  • Voltage Forward (Vf): 3.7V
  • Color Temperature: 2700K (Warm White)
  • Color Rendering Index (CRI): 80
  • Lumens/Watt: 55 lm/W
  • Thermal Resistance of Package: 11 degrees Celsius per watt
  • Packaging: Tape and Reel
  • Standard Package: 1,400
