Same model may have multiple batches, images only for reference.

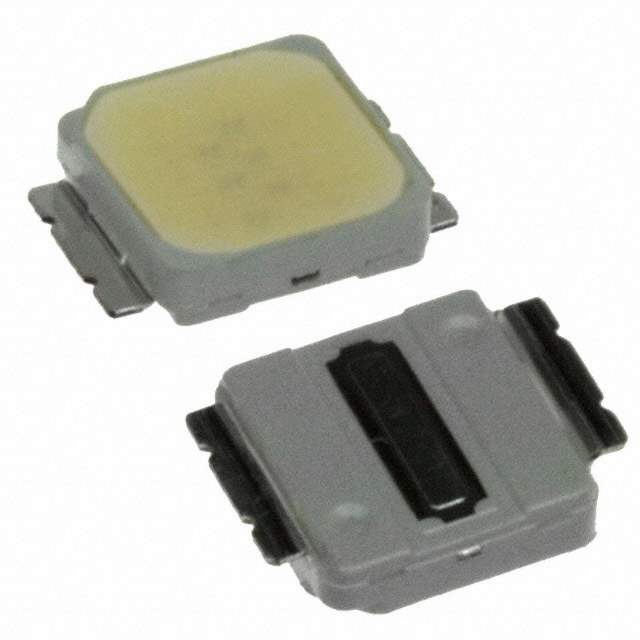

MX6AWT-A1-0000-0009A7 Real Image
Same model may have multiple batches, images only for reference.

MX6AWT-A1-0000-0009A7

Part No MX6AWT-A1-0000-0009A7
Manufacturer CreeLED, Inc.
Catalog LED Lighting - White
Description LED XLAMP WARM WHITE 3250K 2SMD / LED Lighting series White, Warm 3250K 3.3V 300mA 120° 2-SMD, Gull Wing Exposed Pad
Datasheet
MX6AWT-A1-0000-0009A7 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - White
Mfr CreeLED, Inc.
Series XLamp® MX-6
Package Tape & Reel (TR)
Color White, Warm
CCT (K) 3250K
Flux @ 25°C, Current - Test 84lm (81lm ~ 87lm)
Current - Test 300mA
Voltage - Forward (Vf) (Typ) 3.3V
Lumens/Watt @ Current - Test 85 lm/W
CRI (Color Rendering Index) 80 (Typ)
Current - Max 1A
Viewing Angle 120°
Mounting SMD (SMT)
Package / Case 2-SMD, Gull Wing Exposed Pad
Supplier Device Package SMD
Dimension 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height - Seated (Max) 0.058" (1.48mm)
Thermal Resistance of Package 5°C/W
Base Product Number MX6AWT
MSL Level 2A (4 Weeks)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Standard Package 1,400
Win Source Part Number 1006262-MX6AWT-A1-0000-0009A7
Ultra Librarian 3D Model Ultra Librarian MX6AWT-A1-0000-0009A7 CAD Model

Description

The MX6AWT-A1-0000-0009A7 is an electronic component manufactured by CreeLED, Inc.

  • Series: XLamp® MX-6
  • Category: Optoelectronic - LED Lighting (White)
  • Package: Tape and Reel
  • Standard Package: 1,400
  • Mounting: SMD (SMT)
  • Maximum Height: 0.058 inches
  • Viewing Angle: 120 degrees
  • Forward Voltage: 3.3V
  • Maximum Current: 1A
  • CCT: 3250K
  • CRI: 80 (Typ)
  • Thermal Resistance: 5°C/W
  • Flux: 84lm (81lm ~ 87lm) @ 25°C
  • Lumens/Watt: 85 lm/W @ 300mA
