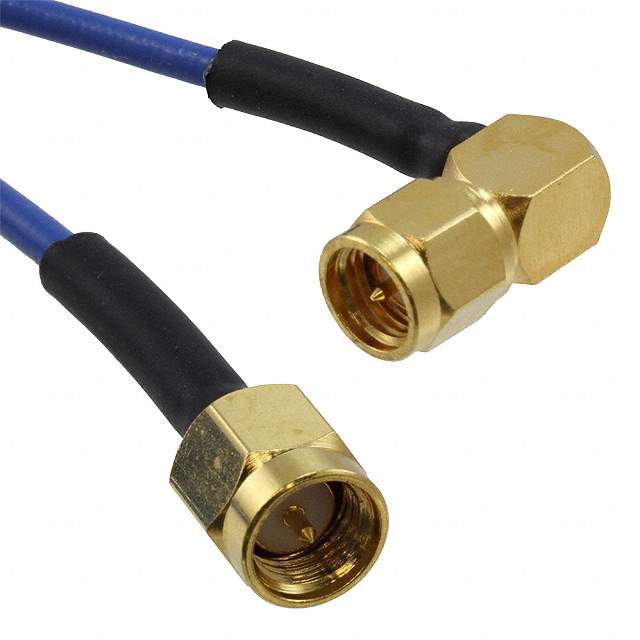

CCSMA121-MM-086F-24 Real Image
Same model may have multiple batches, images only for reference.

CCSMA121-MM-086F-24

Part No CCSMA121-MM-086F-24
Manufacturer Crystek Corporation
Catalog Coaxial Cables (RF)
Description CBL ASSY SMA PLUG-PLUG 24" / Cable Assembly Coaxial SMA to SMA 2.54mm OD Coaxial Cable 24.00" (609.60mm)
Datasheet
CCSMA121-MM-086F-24 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Cable Assemblies - Coaxial Cables (RF)
Mfr Crystek Corporation
Package Bulk
Style SMA to SMA
1st Connector SMA Plug, Right Angle
1st Contact Gender Male
1st Connector Mounting Type Free Hanging (In-Line)
2nd Connector SMA Plug
2nd Contact Gender Male
2nd Connector Mounting Type Free Hanging (In-Line)
Length 24.00" (609.60mm)
Cable Type 2.54mm OD Coaxial Cable
Overall Impedance 50 Ohms
Frequency - Max 12.6 GHz
Color Blue
Features Shielded
Temperature Range - Operating -45°C ~ 85°C
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8544.20.0000
Win Source Part Number 1338792-CCSMA121-MM-086F-24
Ultra Librarian 3D Model Ultra Librarian CCSMA121-MM-086F-24 CAD Model

Description

The Crystek Corporation CCSMA121-MM-086F-24 coaxial cable assembly is a shielded 2.54mm OD coaxial cable with SMA to SMA style connectors.

  • Manufacturer: Crystek Corporation
  • Cable Type: 2.54mm OD Coaxial Cable
  • Connectors: SMA to SMA
  • Length: 24.00" (609.60mm)
  • Frequency: Up to 12.6 GHz
  • Temperature Range: -45°C to 85°C
  • Connectors Gender: Male to Male
  • Impedance: 50 Ohms
  • Shielded: Yes
