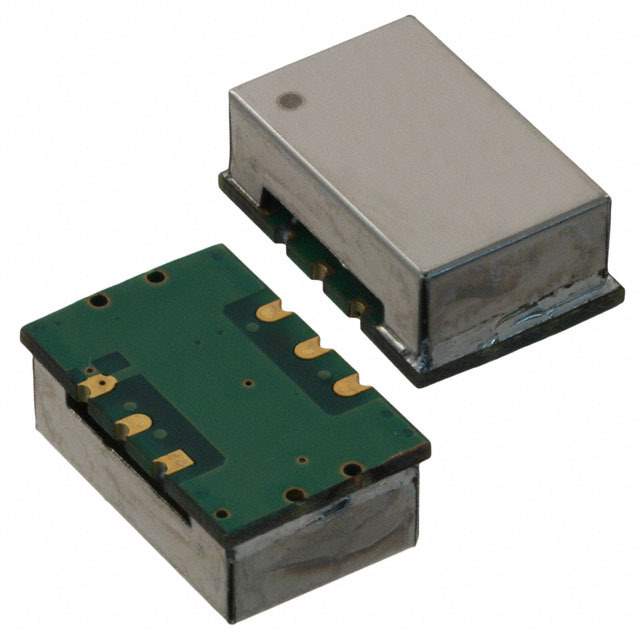

CVPD-970X-622.080 Real Image
Same model may have multiple batches, images only for reference.

CVPD-970X-622.080

Part No CVPD-970X-622.080
Manufacturer Crystek Corporation
Catalog Oscillators
Description XTAL OSC VCXO 622.0800MHZ LVPECL / 622.08 MHz VCXO LVPECL Oscillator 3.3V Enable/Disable 6-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr Crystek Corporation
Series CVPD-970
Package Strip
Product Status Obsolete
Base Resonator Crystal
Type VCXO
Frequency 622.08 MHz
Function Enable/Disable
Output LVPECL
Voltage - Supply 3.3V
Frequency Stability ±25ppm
Absolute Pull Range (APR) ±50ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 80mA
Mounting Type Surface Mount
Package / Case 6-SMD, No Lead
Size / Dimension 0.559" L x 0.360" W (14.20mm x 9.14mm)
Height - Seated (Max) 0.209" (5.30mm)
Standard Package 25
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1349896-CVPD-970X-622.080
Ultra Librarian 3D Model Ultra Librarian CVPD-970X-622.080 CAD Model

Description

The CVPD-970 series VCXO is a high-quality electronic component designed for use in various electronic devices.

  • Manufacturer: Crystek Corporation
  • Frequency: 622.08 MHz
  • Output: LVPECL
  • Frequency Stability: ±25ppm
  • Current Supply (Max): 80mA
  • Package/Case: 6-SMD, No Lead
  • Size/Dimension: 0.559" L x 0.360" W (14.20mm x 9.14mm)
  • Height: 0.209" (5.30mm) Seated
  • Absolute Pull Range (APR): ±50ppm
  • Mounting Type: Surface Mount
  • Temperature Range: -40°C ~ 85°C
