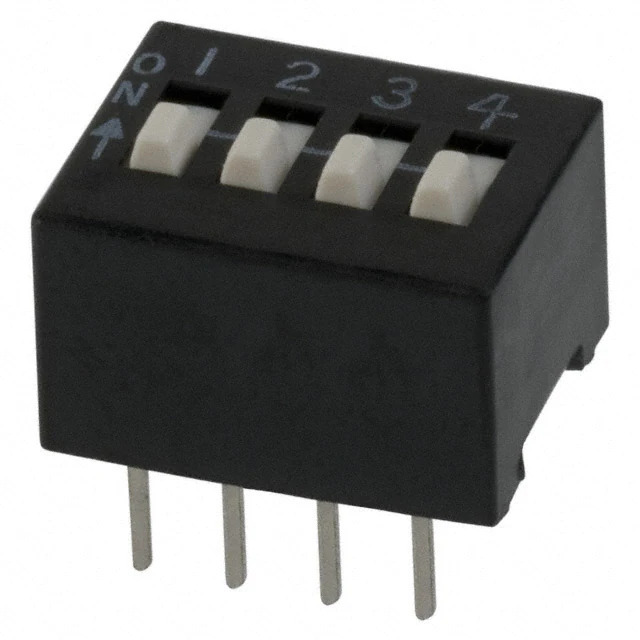

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches - DIP Switches
Mfr CTS Electrocomponents
Series 208
Package Tube
Product Status Active
Circuit SPST
Number of Positions 4
Current Rating (Amps) 50mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Raised
Contact Material -
Contact Finish Tin
Height Above Board 0.334" (8.48mm)
Mounting Type Through Hole
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable No
Features -
Temperature Range - Operating -55°C ~ 85°C
Body Material Plastic
Length 0.486" (12.34mm)
Mechanical Life -
Electrical Life 2,000 Cycles
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1376419-208-4
Ultra Librarian 3D Model Ultra Librarian 208-4 CAD Model

Description

The 1376419-208-4 is a DIP switch from CTS Electrocomponents.

  • Series: 208
  • Mounting Type: Through Hole
  • Circuit Configuration: SPST
  • Current Rating: 50mA
  • Voltage Rating: 24VDC
  • Pitch: 0.100" (2.54mm)
  • Actuator Type: Slide
  • Termination Style: PC Pin
  • Mechanical Life: 2,000 Cycles
  • Electrical Life: 2,000 Cycles
  • Body Material: Plastic
  • Height Above Board: 0.334" (8.48mm)
  • Length: 0.486" (12.34mm)
