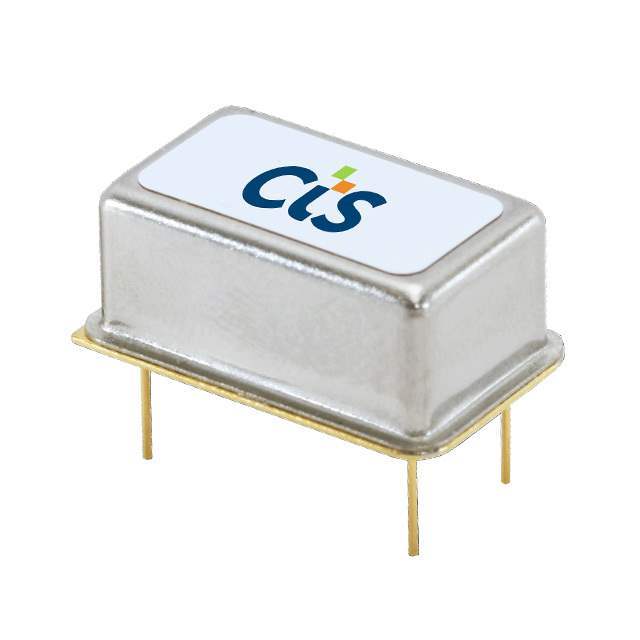

1380100-004 CTS-Frequency Controls
Same model may have multiple batches, images only for reference.

1380100-004

Part No 1380100-004
Manufacturer CTS-Frequency Controls
Catalog Oscillators
Description XTAL OSC OCXO 20.0000MHZ HCMOS
Datasheet
1380100-004 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1310245-1380100-004
Manufacturer CTS-Frequency Controls
Category Crystals, Oscillators, Resonators > Oscillators
Packaging Tray
Part Status Active
Base Resonator Crystal
Type OCXO
Frequency 20 MHz
Output HCMOS
Voltage - Supply 3.3V
Frequency Stability 10ppb
Operating Temperature -40°C ~ 85°C
Ultra Librarian 3D Model Ultra Librarian 1380100-004 CAD Model

Description

The CTS model 1380100 is a low cost, small size, high performance OCXO. The high quality CTS Quartz Crystal used in this OCXO offers high stability and low jitter/phase noise, making it the ideal choice for any telecommunications system
