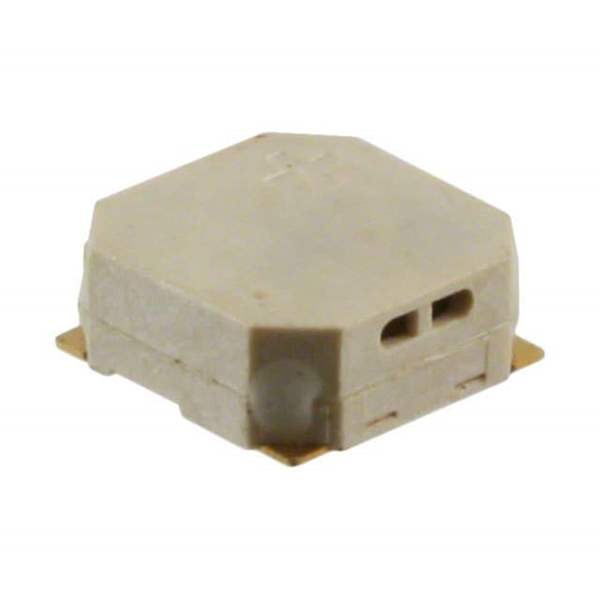

CSS-J4D20-SMT-TR CUI Inc.
Same model may have multiple batches, images only for reference.

CSS-J4D20-SMT-TR

Part No CSS-J4D20-SMT-TR
Manufacturer CUI Inc.
Catalog Alarms, Buzzers, and Sirens
Description AUDIO MAGNETIC XDCR 3-5V SMD / Audio Buzzer Magnetic 3Vo-p 5Vo-p 80mA 3.6Vo-p 90dB Surface Mount Solder Pad T/R
Datasheet
CSS-J4D20-SMT-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Audio Products
Manufacturer CUI Inc.
Series CSS
Packaging Reel package
Driver Circuitry Transducer, Externally Driven
Input Type Zero-Peak Signal
Voltage Rating DC 3.6V
Voltage Range 3 ~ 5V
Frequency 3.1kHz
Technology Magnetic
Operating Mode Single Tone
Sound Pressure Level (SPL) 90dB @ 3.6V, 5cm
Operating Supply Current 80mA
Port Location Side
Operating Temperature Range -40°C ~ 70°C
Mounting SMD
Termination Solder Pads
Dimension 0.335" L x 0.335" W (8.50mm x 8.50mm)
Height - Seated (Maximum) 0.146" (3.70mm)
Win Source Part Number 771911-CSS-J4D20-SMT-TR
Popularity Medium
Supply and Demand Status Limited
ECCN EAR99
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian CSS-J4D20-SMT-TR CAD Model

Description

The CUI Inc. CSS-J4D20-SMT-TR is an audio product that generates sound with a sound pressure level of 90dB @ 3.6V and 5cm.

  • Voltage Range: 3 ~ 5V
  • Operating Supply Current: 80mA
  • Frequency: 3.1kHz
  • Operating Mode: Single Tone
  • Supply and Demand Status: Balanced
  • Popularity: Medium
