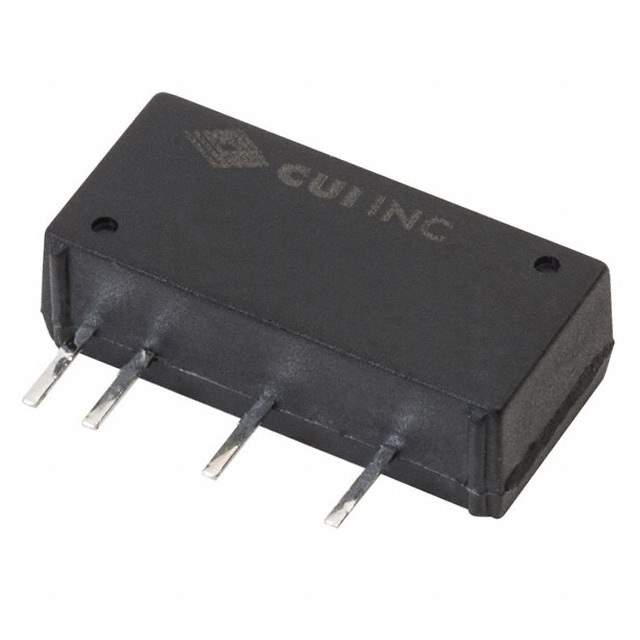

Same model may have multiple batches, images only for reference.

PDM1-S5-S5-S

Name: PDM1-S5-S5-S
Brand: CUI Inc.
SKU: 1320592
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	PDM1-S5-S5-S
Manufacturer	CUI Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 5V 1W / Isolated Module DC DC Converter 1 Output 5V 200mA 4.5V - 5.5V Input
Datasheet	PDM1-S5-S5-S Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	CUI Inc.
Packaging	Tube
Product Status	Not For New Designs
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	5.5V
Voltage - Output 1	5V
Current - Output (Max)	200mA
Power (Watts)	1 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	SCP
Temperature Range - Operating	-40°C ~ 105°C
Efficiency	80%
Mounting	Through Hole
Case / Package	6-SIP Module, 4 Leads
Size / Dimension	0.77" L x 0.24" W x 0.37" H (19.5mm x 6.0mm x 9.3mm)
Approval Agency	CB Scheme, EN, IEC, UL
Standard Number	55024; 55032 Class A; 60950-1; 61000-3-2; 61000-3-3
Base Product Number	PDM1-S5
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	PDM1-S5-S5-S-ND,PDM1S5S5S,102-2998-5
Standard Package	25
Win Source Part Number	1320592-PDM1-S5-S5-S
Ultra Librarian 3D Model	Ultra Librarian PDM1-S5-S5-S CAD Model

Alternative Products

Description

The CUI Inc. PDM1-S5-S5-S is a 1W power supply DC-to-DC converter in a 6-SIP module, 4 leads package.

Power: 1W
Voltage Input Range: 4.5V to 5.5V
Voltage Output: 5V
Efficiency: 80%
Temperature Range: -40°C to 105°C
Voltage Isolation: 1.5 kV
Features: SCP
Maximum Output Current: 200mA
Application: ITE (Commercial)
RoHS Compliant: Yes
Approvals: CB Scheme, EN, IEC, and UL
