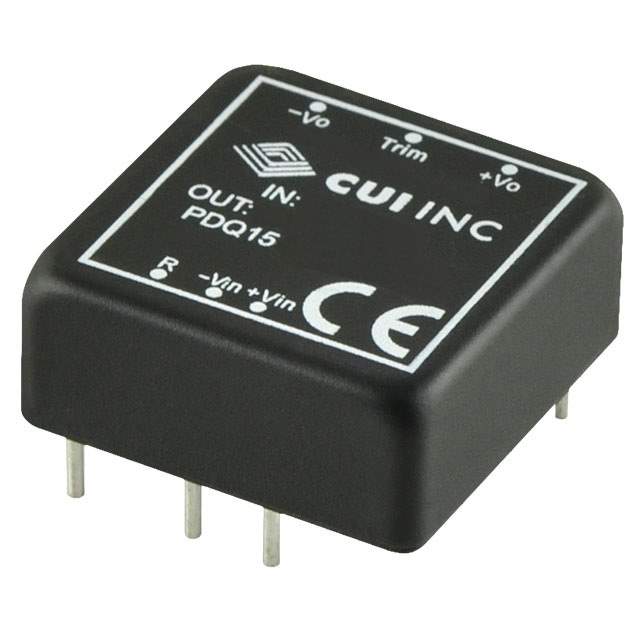

Same model may have multiple batches, images only for reference.

PDQ15-Q24-S15-D

Name: PDQ15-Q24-S15-D
Brand: CUI Inc.
SKU: 1337340
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	PDQ15-Q24-S15-D
Manufacturer	CUI Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 15V 15W / Isolated Module DC DC Converter 1 Output 15V 1A 9V - 36V Input
Datasheet	PDQ15-Q24-S15-D Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	CUI Inc.
Series	PDQ15-D (15W)
Package	Tube
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	9V
Voltage - Input (Max)	36V
Voltage - Output 1	15V
Current - Output (Max)	1A
Power (Watts)	15 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OVP, SCP, UVLO
Temperature Range - Operating	-40°C ~ 105°C
Efficiency	88%
Mounting Type	Through Hole
Package / Case	6-DIP Module
Size / Dimension	1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm)
Control Features	Enable, Active High
Base Product Number	PDQ15
Standard Package	12
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1337340-PDQ15-Q24-S15-D
Ultra Librarian 3D Model	Ultra Librarian PDQ15-Q24-S15-D CAD Model

Alternative Products

Description

The PDQ15-D (15W) is an isolated module power supply with features like remote on/off, OCP, OVP, SCP, UVLO.

Type: Isolated Module
Number of Outputs: 2
Voltage - Input (Min): 9V
Voltage - Input (Max): 36V
Voltage - Output 1: 5V
Voltage - Output 2: -5V
Current - Output 1: 1.5A
Current - Output 2: -1.5A
Power (Watts): 15W
Applications: ITE (Commercial)
Features: Remote On/Off, OCP, OVP, SCP, UVLO
Efficiency: 83%
Operating Temperature: -40°C ~ 105°C
Mounting Type: Through Hole
Package / Case: 6-DIP Module
Size / Dimension: 1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm)
