Same model may have multiple batches, images only for reference.

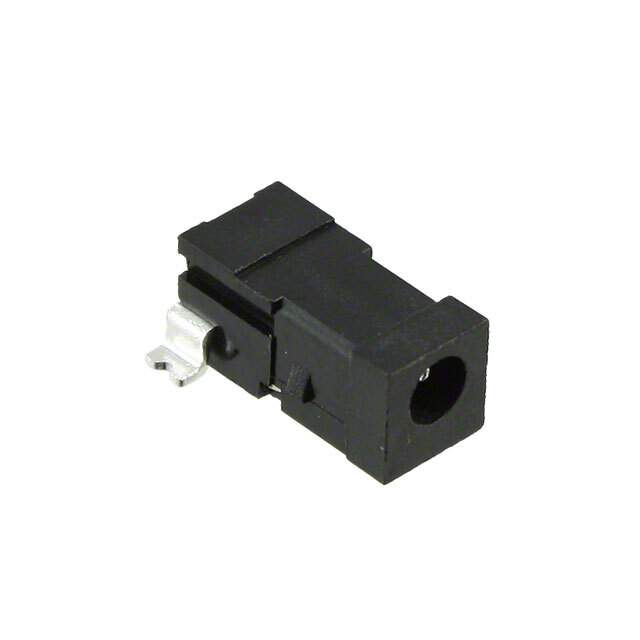

PJ1-022-SMT-TR Real Image
Same model may have multiple batches, images only for reference.

PJ1-022-SMT-TR

Part No PJ1-022-SMT-TR
Manufacturer CUI Inc.
Catalog Barrel - Power Connectors
Description CONN PWR JACK 0.7X2.35MM SOLDER / Power Barrel Connector Jack 0.70mm ID (0.028"), 2.35mm OD (0.093") EIAJ-1 Surface Mount, Right Angle
Datasheet
PJ1-022-SMT-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Barrel Connectors>Power Connectors
Manufacturer CUI Devices
Packaging Reel - TR
Connector Type Jack
Gender Male
Industry Recognized Mating Diameter 0.70mm ID (0.028"), 2.35mm OD (0.093") EIAJ-1
Actual Diameter 0.026" (0.65mm ID), 0.110" (2.80mm OD)
Number of Positions/Contacts 2 Conductors, 3 Contacts
Internal Switch(s) Single Switch, Normally Closed
Mounting Surface Mount, Right Angle
Termination Solder
Shielding Unshielded
Features Board Guide
Voltage - Rated 24VDC
Current Rating (Amps) 2.5 A
Mating Length/Depth 0.315" (8.00mm)
Material Flammability Rating UL94 V-0
Contact Material - Plating Silver
Temperature Range - Operating -25°C ~ 85°C
Housing Material Polyamide (PA6T), Nylon 6T
Contact Material Brass, Copper Alloy
Body Color Black
Base Product Number PJ1-022
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number CP1-022PJTR,045-0882R,CP1-022PJTR-NDR,CP1-022PJDKR,PJ1-022-SMT,CP1-022PJCT-NDR,PJ1022SMTTR,CP1-022PJCT,2266-PJ1-022-SMT-TR
Standard Package 1,000
Win Source Part Number 1334359-PJ1-022-SMT-TR
Ultra Librarian 3D Model Ultra Librarian PJ1-022-SMT-TR CAD Model

Description

The PJ1-022-SMT-TR is a power connector from CUI Devices that is used in various applications such as power supplies, networking equipment, and security systems.

  • Conductors: 2
  • Contacts: 3
  • Connector Type: Male Jack
  • Voltage Rating: 24VDC
  • Mounting Type: Surface Mount, Right Angle
  • RoHS Compliant: Yes
