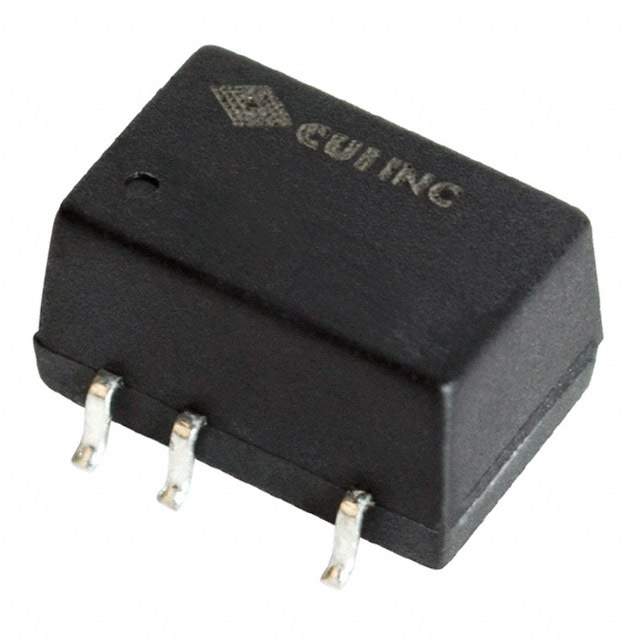

PDS1-S24-S5-M-TR

Name: PDS1-S24-S5-M-TR
Brand: CUI Inc.
SKU: 993298
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	PDS1-S24-S5-M-TR
Manufacturer	CUI Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 5V 1W / Isolated Module DC DC Converter 1 Output 5V 200mA 21.6V - 26.4V Input
Datasheet	PDS1-S24-S5-M-TR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	CUI Inc.
Series	PDS1-M (1W)
Package	Tape & Reel
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	21.6V
Voltage - Input (Max)	26.4V
Voltage - Output 1	5V
Current - Output (Max)	200mA
Power (Watts)	1 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	SCP
Temperature Range - Operating	-40°C ~ 105°C (With Derating)
Efficiency	80%
Mounting	SMD (SMT)
Package / Case	8-SMD Module, 5 Leads
Dimension	0.50" L x 0.33" W x 0.29" H (12.7mm x 8.3mm x 7.3mm)
Approval Agency	EN, UL
Standard Number	55024; 55032 Class A; 60950-1
Base Product Number	PDS1-S24
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.40.9580
Other Names	102-2685-1,102-2685-6,PDS1S24S5MTR,102-2685-2
Standard Package	500
Win Source Part Number	993298-PDS1-S24-S5-M-TR
Ultra Librarian 3D Model	Ultra Librarian PDS1-S24-S5-M-TR CAD Model

Alternative Products

Description

The PDS1-M (1W) series isolated module DC-DC converter from CUI Inc. is a power supply board mount DC-DC converter that comes with SCP features.

Features: SCP
Application: ITE (Commercial)
Standard Package: 500
Mounting Style: SMD (SMT)
Power Output: 1 W
Voltage Isolation: 1.5 kV
Number of Outputs: One
Maximum Output Current: 200mA
Input Voltage: 21.6V to 26.4V
Output Voltage: 5V
Efficiency: 80%
Package/Case: 8-SMD Module, 5 Leads
Temperature Range: -40°C to 105°C (With Derating)
Approvals: EN, UL
Standard Numbers: 55024, 55032 Class A, 60950-1
